Official DistributorBy ABB
SKU
Weight
0.807 kg

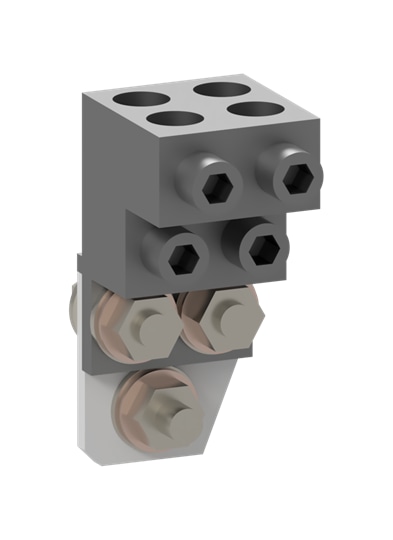

OZXA-604 Mechanical Lug Kit - Mechanical lug for wire range 2x AWG 6 - 300MCM.Suitable for DC Switch M-series: OTDC600UF_ and OTDC630F_. Package of 2pcs, including screws and nuts.
Technical Specifications
Circular Value
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Information | 1SCC301239D0201 |
Dimensions
| Product Frame Size | M |
| Product Net Width | 150 mm, 5.9 in |
| Product Net Height | 150 mm, 5.9 in |
| Product Net Depth / Length | 50 mm, 2 in |
| Product Net Weight | 0.9 kg |
Technical
| Standards | UL98B and IEC 60947-1, -3 |
| Special Functions | No |
| Color | Metal |
| Terminal Type | Lug terminals |
Environmental
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Why Proax for ABB OZXA-604?
Proax is an authorized distributor of ABB OZXA-604 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | OZXA604 |
| Pack Size | 1 |
