OS600JS30
Official DistributorBy ABB
SKU
ABBOS600JS30
MPN
1SCA108111R1001
Weight
15.1 kg

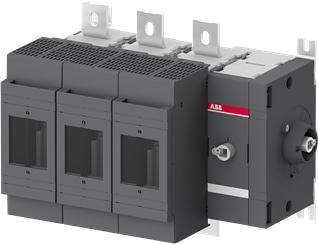

Fusible disconnect switch, 600A, class J, side operated, 3-pole
Technical Specifications
ABB EcoSolutions
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Product Declaration - EPD | 1SCC311202D0201 |
Dimensions
| Product Net Width | 247 mm |
| Product Net Height | 389 mm |
| Product Net Depth / Length | 306 mm |
| Product Net Weight | 15.1 kg |
Technical
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 630 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 600 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | 600 A |
| Fuse System | Class J |
| Handle Type | Handle not included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating mode | Side |
| Power Loss | at Rated Operating Conditions per Pole 46 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 200 kW |
| Rated Operational Power AC-23A (Pe) | (400 V) 355 kW |
| Rated Operational Power AC-23A (Pe) | (415 V) 355 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 450 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 630 kW |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms |
| Standards | UL98 |
| Terminal Type | Lug terminals |
| Tightening torque | 50 … 75 N·m |
Technical UL/CSA
| Ampere Rating | 600 A |
| Tightening torque | 50 … 75 N·m |
