Official DistributorSKU
Weight
0.098 kg
This product is Not Cancellable/Not Returnable

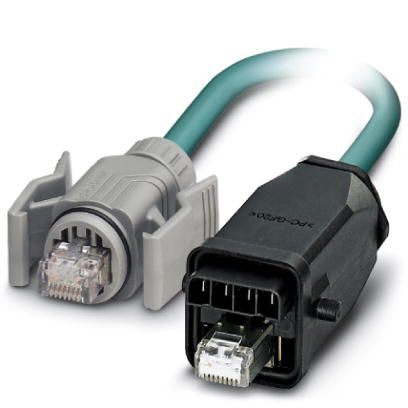

Cable VS-08-LI-VS67-HAN3AH-51-1,0
Assembled Ethernet cable, shielded, 4-pair, 26 AWG stranded (7-wire), RAL 5021 (water blue), RJ45 plug/IP67 (gray) to HAN3 RJ45 plug (black), line, length: 1.0 m
Technical Specifications
Mechanical characteristics
| Weight | 97 g |
Ambient conditions
| Ambient Temperature (Operation) | -30 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 60 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | Plug / socket |
Line characteristics
| Cable Type | Ethernet |
| Cable structure | 4x2xAWG26/7; S-UTP |
| Conductor Cross Section | 0.14 mm² |
| AWG Signal Line | 26 |
| Conductor structure signal line | 7x 0.16 mm |
| Core diameter including insulation | 1 mm |
| External Cable Diameter | 6.10 mm |
| Wire colors | white/blue-blue, white/orange-orange, white/green-green, white/brown-brown |
| External sheath, color | water blue RAL 5021 |
| Insulation resistance | ≥ 5 GΩ*km |
| Conductor resistance | ≤ 284 Ω/km |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Working capacitance | 48 nF (At 800 Hz) |
| Wave impedance | 100 Ω ±15 % (at 1 ... 100 MHz) |
| Nominal voltage, cable | 125 V |
| Test voltage Core/Core | 1000 V |
| Test voltage Core/Shield | 500 V |
| Twisted pairs | 2 cores to the pair |
| Overall twist | 4 pairs for core |
| Shielding | Plastic-coated aluminum foil, tinned copper braided shield |
| Optical shield covering | 85 % |
| Outer sheath, material | PUR |
| Conductor material | Bare Cu litz wires |
| Smallest bending radius, fixed installation | 50 mm (cable, fixed installation) |
| Smallest bending radius, movable installation | 95 mm (Cable, flexible installation) |
| Ambient Temperature (Operation) | -20 °C ... 70 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 60 °C (Cable, flexible installation) |
Environmental Product Compliance
| China RoHS | For details about hazardous substances go to tab “Downloads |
Why Proax for Phoenix Contact 1658011?
Proax is an authorized distributor of Phoenix Contact 1658011 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 20 |
