1644546
Official DistributorSKU
PHX1644546
MPN
HC-B 6-SD-MLT/FS-AL
Weight
0.075 kg
This product is Not Cancellable/Not Returnable
Series HC-B

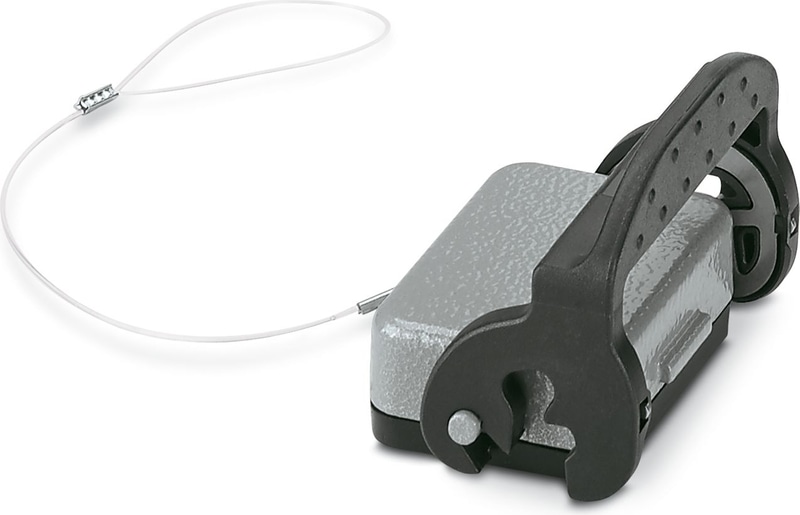

HC-B 6-SD-MLT/FS-AL - Protective cover
Protective cover B6, with single locking latch, protective cover material: Al, height: 20 mm, seal: yes, with lanyard
HC-B
The Phoenix Contact HC-B Series comprises heavy-duty rectangular connectors engineered for industrial applications requiring robust and reliable power and signal transmission. These connectors are designed to withstand harsh environmental conditions, ensuring secure and efficient connectivity in demanding settings.
- Variety of Sizes: The HC-B Series offers multiple sizes, including B6, B10, B16, and B24, accommodating different space and connection requirements.
- High Number of Positions: Depending on the size, these connectors provide a range of contact positions, such as 6+PE, 10+PE, 16+PE, and 24+PE, facilitating versatile wiring configurations.
- Robust Electrical Specifications: Rated for voltages up to 500 V and currents up to 16 A, the HC-B connectors are suitable for power-intensive applications.
- Durable Construction: Featuring housings made from high-quality materials, these connectors offer excellent resistance to mechanical stress and environmental factors.
- Secure Connection Technologies: The series includes various connection methods, such as screw and push-in connections, ensuring reliable and maintenance-friendly installations.
Technical Specifications
Product properties
| Housing type | Protective cover |
| Type | B6 |
| Type | for sleeve housing without single locking latch |
| Retaining cord present | yes |
| Seal present | yes |
Dimensions
| Width | 43 mm |
| Height | 20 mm |
| Length | 60 mm |
| Diameter | 30 mm |
Material specifications
| Material Protective cover | die-cast aluminum |
| Seal material | NBR |
| Housing surface material | Powder-coated, gray |
| Material, protective cover | Al |
| Locking latch material | High-grade steel, handle: PA-GF |
Mechanical data
| Locking Type | Latch |
Ambient conditions
| Degree of Protection | IP66 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Mounting
| Assembly instructions | Not for HC-B...EMC housings |
| Assembly instructions | The guide pins of the protective cover must be removed when using coding sockets, pins, and bolts. |
Why Proax for Phoenix Contact 1644546?
Proax is an authorized distributor of Phoenix Contact 1644546 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
