1636509
Official DistributorSKU
PHX1636509
MPN
KV-M-M50-GD-( 8)
Weight
0.212 kg
Series KV-M-M50

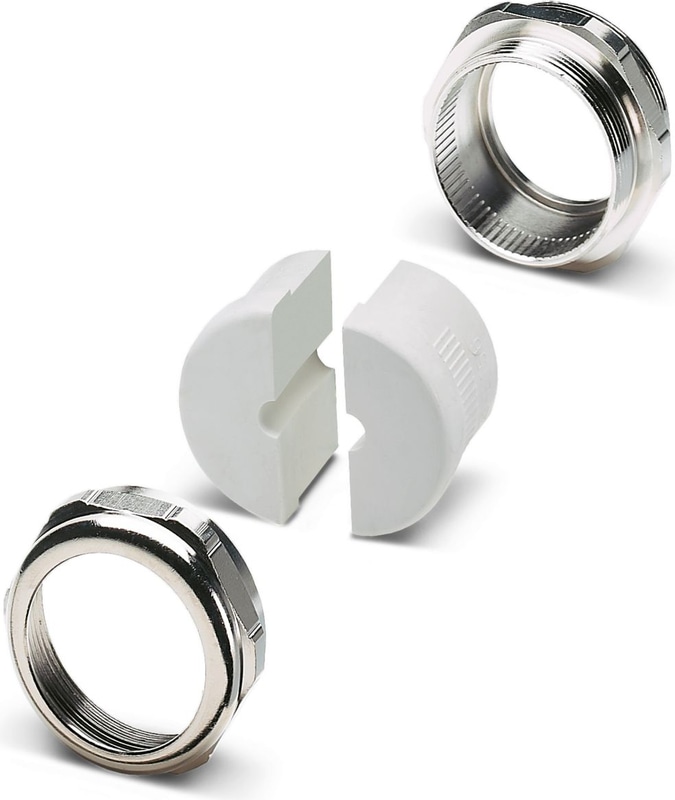

KV-M-M50-GD-( 8) - Cable gland
HEAVYCON M50 cable screw connection, metal, panel feed-through for data plug, with separable grommet, 1 x 8 mm hole diameter; inside diameter 37 mm
Documents
Technical Specifications
Product properties
| Application | for data connectors |
| Application | Standard |
| No. of conductors | 1 |
| Manufacturer | Pflitsch |
| Manufacturer Designation | 25056 dpmk 1/8 |
| Shielded | no |
Characteristics
| Conductor sealing range | 7.50 mm ... 8.00 mm |
Dimensions
| Height | 58 mm |
| Length | 39 mm |
| Length of the connecting thread | 10 mm |
| Wrench size, union nut | 50 mm |
| Wrench size, support | 54 mm |
| Hexagon angular dimension | 58 mm |
| Thread type connection side | M50 x 1.5 |
| Thread pitch | 1.5 mm |
Internal dimensions
| Internal diameter | 37 mm |
Material specifications
| Color | Brass color |
| Seal material O-ring | NBR |
| Seal material | TPE |
| Material for screw connection | Brass, nickel-plated |
Cable/line
| External cable diameter Cable 1 | 7.5 mm ... 8 mm |
| Halogen-free | no |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Why Proax for Phoenix Contact 1636509?
Proax is an authorized distributor of Phoenix Contact 1636509 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
