Name: 1619996
Brand: Phoenix Contact
SKU: PHX1619996
Price: 55.4700 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

CA-12M1N8A9504

Weight

0.096 kg

Series CA

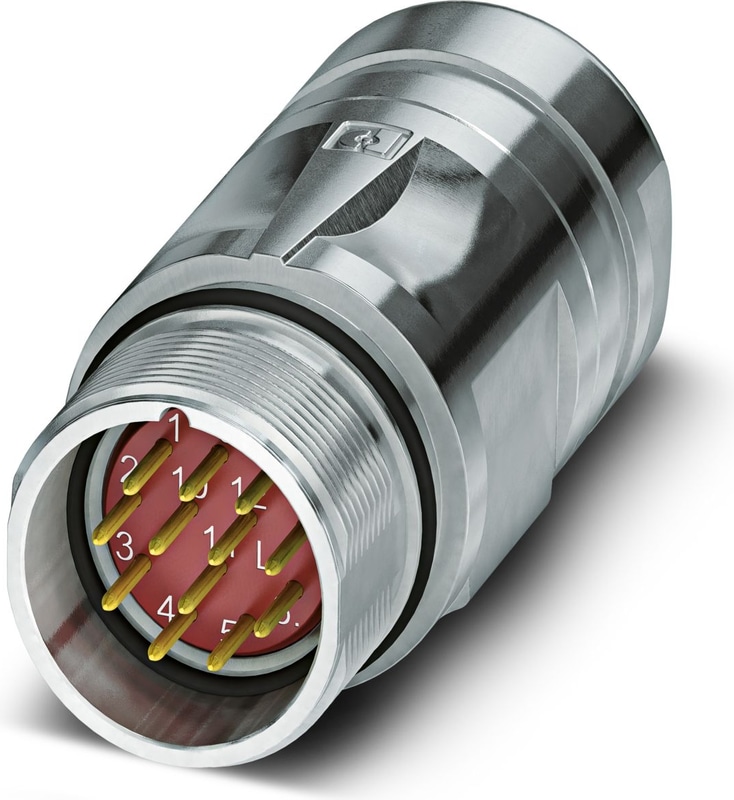

CA-12M1N8A9504 - Coupler connector

M23, Coupler connector, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, cable diameter range: 10 mm ... 14.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1243935

Safe use in the field, thanks to high degree of protection
Connector for flexible on-site assembly
Consistent EMC protection for reliable connection solutions in the industrial environment
Crimping connection: vibration- and temperature-resistant assembly

Notes

Order information:

Order crimp contacts Ø 1 mm separately

Insulating body

Note	Order information: Order crimp contacts Ø 1 mm separately
Coding	N
Insulation body material	PA 6.6
Connection Method	Crimp connection
Contact switching type	Pin
Application	Feedback, signal
Application	Signal
Number of Positions	12
Direction of rotation	Standard
Connection profile	12
Contact diameter Signal contacts	1 mm
Litz wire cross-section Signal contacts min.	0.06 mm²
Litz wire cross-section Signal contacts max.	1 mm²
Nominal current per signal contact	8 A
Rated voltage Signal contact	48 V AC
Rated surge voltage	1.5 kV
Overvoltage category	III
Degree of pollution	3

Housing

Housing Material	Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking	for standard and SPEEDCON interlock
Pg screw connection	none
Degree of protection (plugged in)	IP67
Thread type	M23

Seal

External Cable Diameter	10 mm ... 14.5 mm
Seal material	FPM

Ambient conditions

Ambient Temperature (Operation)

-40 °C ... 125 °C

1605559
SF-6CP2000 - Crimp contact, Pin, turned, Single contact, contact diameter: 1 mm, crimp range: 0.06 mm2 ... 0.25 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241921
1607355
SF-10KP004 - Crimp contact, Pin, turned, Single contact, contact diameter: 1 mm, crimp range: 0.14 mm2 ... 0.5 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241921
1605554
SF-6AP2000 - Crimp contact, Pin, turned, Single contact, contact diameter: 1 mm, crimp range: 0.25 mm2 ... 1 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241921
1604225
Protective cap - RC-Z2059
1611797
Plastic anti-static dust protection cap - RC-Z2469
1604260
Metal protective cap - RC-Z2104
1604236
Metal protective cap - RC-Z2068
1620588
RF-Z0014 - Color coding, color: green
1620592
RF-Z0015 - Color coding, color: orange
1620593
Color-coding, color: black
