Phoenix Contact 1619852

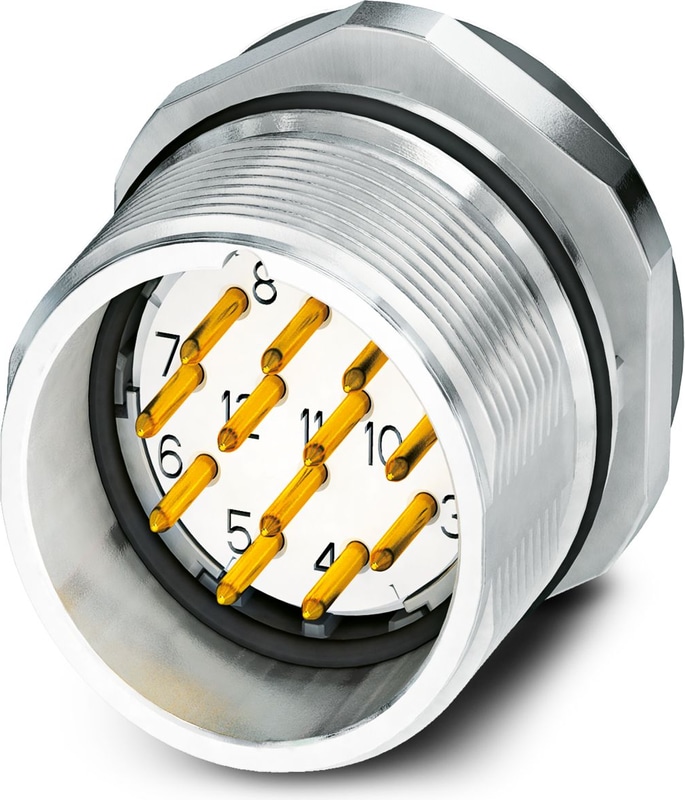

The figure shows the 12-pos. product version
AllConnectorsCircular connectors
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
CA-19P1N126Y00
Weight
0.032 kg
This product is Not Cancellable/Not Returnable
Series CA

CA-19P1N126Y00 - Device connector front mounting

M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 16+3, Direction of rotation: Standard, contact connection type: Pin, Solder connection, Axial seal, Central fastening M20 x 1.5, coding: N, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1243855

  • Safe use in the field, thanks to high degree of protection
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Solder connection: proven connection technology for various litz wires
  • Application-specific wall mounting optionally with thread or anti-rotation protection and lock nut
Technical Specifications

Insulating body

CodingN
Insulation body materialPA 6.6
Contact MaterialCuZn
Contact surface materialNi/Au
Insertion/withdrawal cycles100
Connection MethodSolder connection
Contact switching typePin
ApplicationSignal
Number of Positions19
Direction of rotationStandard
Connection profile16+3
Contact diameter Power contacts1.5 mm
Litz wire cross-section Power contacts max.1 mm²
Rated current Power contacts10 A
Rated voltage48 V AC
Rated voltage74 V DC
Rated surge voltage1.5 kV
Overvoltage categoryIII
Degree of pollution3
Contact diameter Signal contacts1 mm
Litz wire cross-section Signal contacts max.1 mm²
Nominal current per signal contact8 A
Installation height2000 m

Housing

Order information:If necessary, order locking nut separately
Housing MaterialGD-Zn
Type of lockingfor standard and SPEEDCON interlock
Pg screw connectionnone
Degree of protection (plugged in)IP67
Thread typeM23

Ambient conditions

Ambient Temperature (Operation)-40 °C ... 125 °C
Accessories
  • Phoenix Contact1604225
    1604225
    Protective cap - RC-Z2059
  • Phoenix Contact1611797
    1611797
    Plastic anti-static dust protection cap - RC-Z2469
  • Phoenix Contact1604260
    1604260
    Metal protective cap - RC-Z2104
  • Phoenix Contact1604236
    1604236
    Metal protective cap - RC-Z2068
  • Phoenix Contact1620700
    1620700
    CA-Z0110 - Color coding, color: green
  • Phoenix Contact1620701
    1620701
    CA-Z0111 - Color coding, color: orange
  • Phoenix Contact1620702
    1620702
    Color-coding - CA-Z0112
  • Phoenix Contact1620699
    1620699
    CA-Z0001 - Unlocking tool for contact carriers for snapping in the M23 signal device connectors
  • Phoenix Contact1600417
    1600417
    RC-13041 - Flat nut, Screw mounting, M20 x 1,5, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241209

Why Proax for Phoenix Contact 1619852?

Proax is an authorized distributor of Phoenix Contact 1619852 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information

Pack Size1
