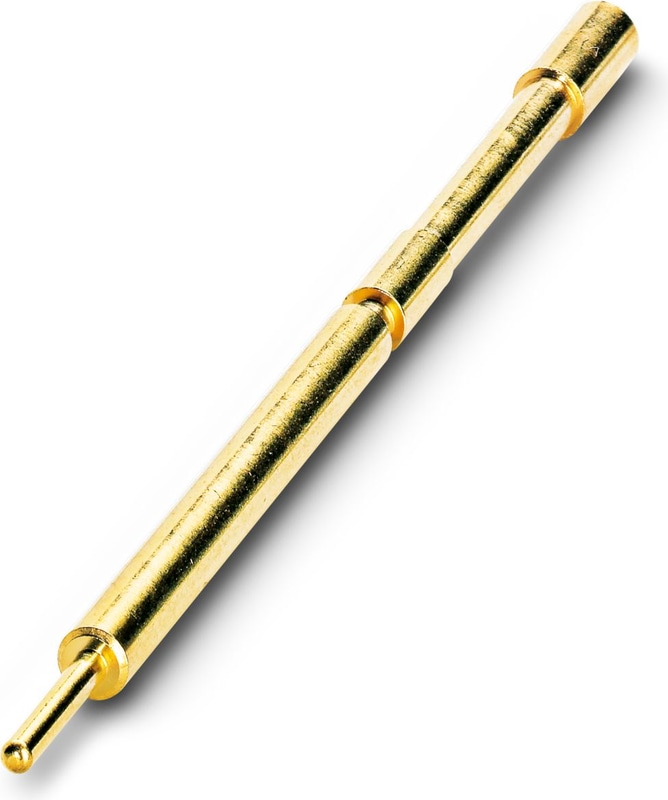

The figure may differ depending on the connection area
1607909
Official DistributorSKU
PHX1607909
MPN
SL-16KP010
Weight
0.006 kg
This product is Not Cancellable/Not Returnable
SL-16KP010 - Crimp contact
Crimp contact, Pin, turned, contact diameter: 1.6 mm, crimp range: 0.75 mm2 ... 1 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1242372
- Crimping connection: vibration- and temperature-resistant assembly
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
Technical Specifications
Product properties
| Contact material type | turned |
Connection data
| Connection Method | Crimp connection |
| Contact connection type | Pin |
| Conductor Cross Section | 0.75 mm² ... 1 mm² |
Material specifications
| Contact surface | Nickel-plated (Ni), with gold coating (Au) |
| Contact Material | CuZn |
Mechanical characteristics
| Contact diameter | 1.6 mm |
Mechanical data
| Insertion/withdrawal cycles | 100 |
Accessories
SF-Z0025 - Crimping pliers for turned crimp contacts Ø 1.0 mm / Ø 1.6 mm / Ø 2 mm / Ø 3.6 mm, litz wire cross section of 0.08 mm2 ... 6 mm2
Why Proax for Phoenix Contact 1607909?
Proax is an authorized distributor of Phoenix Contact 1607909 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
Recommended
SL-16KS010 - Crimp contact, Socket, turned, contact diameter: 1.6 mm, crimp range: 0.75 mm2 ... 1 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1242375
