1607767
Official DistributorSKU
PHX1607767
This product is Not Cancellable/Not Returnable

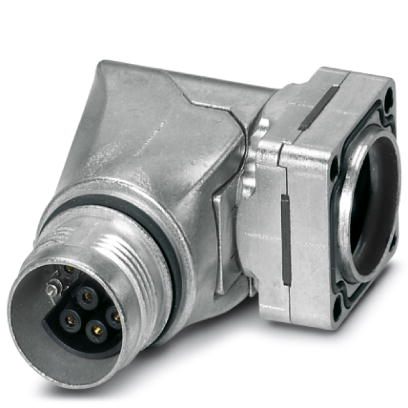

Device connector, front mounting ST-7ES1N8AAD00S
Device connector, front mounting, angled rotatable, SPEEDCON locking, M17, number of positions: 7+PE, type of contact: Socket, Crimp connection, Axial O-ring, 4x Ø2,7, shielded: yes, flange dimensions: 21.6 mm x 21.6 mm
Technical Specifications
General
| Note | Order information: Order crimp contacts Ø 1 mm separately |
| Type of locking | SPEEDCON locking |
| Direction of rotation of contact chamber numbering | Standard |
| Coding | N |
| Contact connection method | Crimp connection |
| Type of contacts | Socket |
| Number of Positions | 8 |
| Contact diameter of power contacts | 1 mm |
| Nominal current per power contact at 25°C | 14 A |
| Contact diameter of signal contacts | 1 mm |
| Pg housing screw connection | none |
| Mounting Type | 4x Ø2,7 |
Ambient conditions
| Ambient Temperature | -40 °C ... 125 °C |
| Degree of Protection | IP67 |
Material
| Housing Material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Insulator Material | PA 6.6 |
| Gasket and O-ring material | FPM |
Specifications according to DIN EN 61984:2001
| Installation height max. | 3000 m |
| Nominal / operating voltage of power contacts | 630 V |
| Rated surge voltage of power contacts | 6 kV |
| Overvoltage category of power contacts | III |
| Degree of pollution of power contacts | 3 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
ST-10KS010 - Crimp contact, Socket, turned, Single contact, contact diameter: 1 mm, crimp range: 0.06 mm2 ... 0.25 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1243216- ST-10KS020 - Crimp contact, turned, Single contact, contact diameter: 1 mm, crimp range: 0.34 mm2 ... 0.5 mm2
- ST-10KS030 - Crimp contact, turned, Single contact, contact diameter: 1 mm, crimp range: 0.5 mm2 ... 1 mm2
