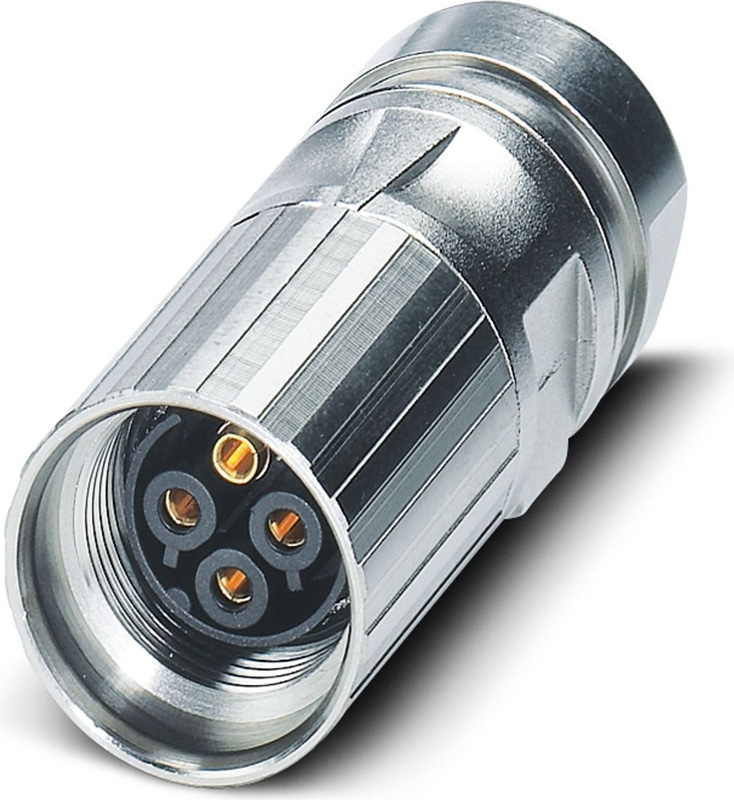

The figure shows the 4-pos. (3+PE) product version
1607752
Official DistributorSKU
PHX1607752
MPN
ST-7ES1N8A8002
Weight
0.03 kg
ST-7ES1N8A8002 - Cable connector
Cable connector, straight, Screw locking mechanism, M17, number of positions: 7+PE, contact connection type: Socket, shielded: yes, degree of protection: IP67, cable diameter range: 3.5 mm ... 5 mm, number of positions: 8, connection method: Crimp connection, series: ST
Technical Specifications
Notes
| Order information: | Order crimp contacts Ø 1 mm separately |
Product properties
| Series | ST |
| Application | Power |
| Number of Positions | 8 |
| Connection profile | 7+PE |
| Shielded | yes |
| Coding | N |
| Thread type | M17 |
Material specifications
| Seal material | FPM |
| Housing Material | Metal |
| Housing Material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Insulator Material | PA 6.6 |
| Gasket and O-ring material | FPM |
Conductor connection
| Connection Method | Crimp connection |
Contact
| Contact diameter | 1 mm |
| Max. current | 14 A |
| Nominal voltage UN | 630 V |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
| Contact diameter | 1 mm |
Connector
| Type | straight |
| Direction of rotation | Standard |
Cable/line
| External Cable Diameter | 3.5 mm ... 5 mm |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
| Altitude | 2000 m |
Why Proax for Phoenix Contact 1607752?
Proax is an authorized distributor of Phoenix Contact 1607752 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 30 |
