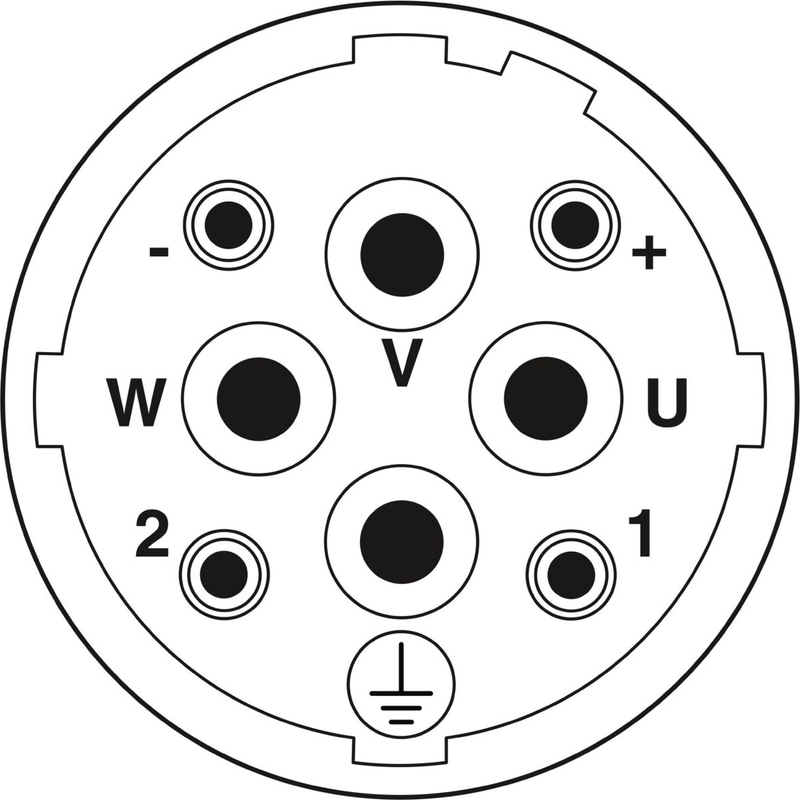

Connector pin assignment
1605829
Official DistributorSKU
PHX1605829
MPN
SM-7EP1N8A9L04
Weight
0.573 kg
This product is Not Cancellable/Not Returnable
SM-7EP1N8A9L04 - Coupler connector
Coupler connector, straight long, Screw locking mechanism, M40, number of positions: 4+3+PE, contact connection type: Pin, shielded: yes, cable diameter range: 17 mm ... 21 mm, connection method: Crimp connection, series: SM
Technical Specifications
Notes
| Order information: | Order crimp contacts 4 x Ø 2 mm, 4 x Ø 3.6 mm separately |
Product properties
| Series | SM |
| Application | Power |
| Connection profile | 4+3+PE |
| Shielded | yes |
| Thread type | M40 |
Conductor connection
| Connection Method | Crimp connection |
Contact
| Contact diameter | 3.6 mm |
| Max. current | 70 A |
| Nominal voltage UN | 630 V |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
| Contact diameter | 2 mm |
| Max. current | 30 A |
| Nominal voltage UN | 250 V |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 4 kV |
Connector
| Type | straight long |
Cable/line
| External Cable Diameter | 17 mm ... 21 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
| Altitude | 3000 m |
Why Proax for Phoenix Contact 1605829?
Proax is an authorized distributor of Phoenix Contact 1605829 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 12 |
