HC-D 40-A-UT-PER-M
Weight
0.337 kg
Series HC-D
HC-D 40-A-UT-PER-M - Terminal adapter

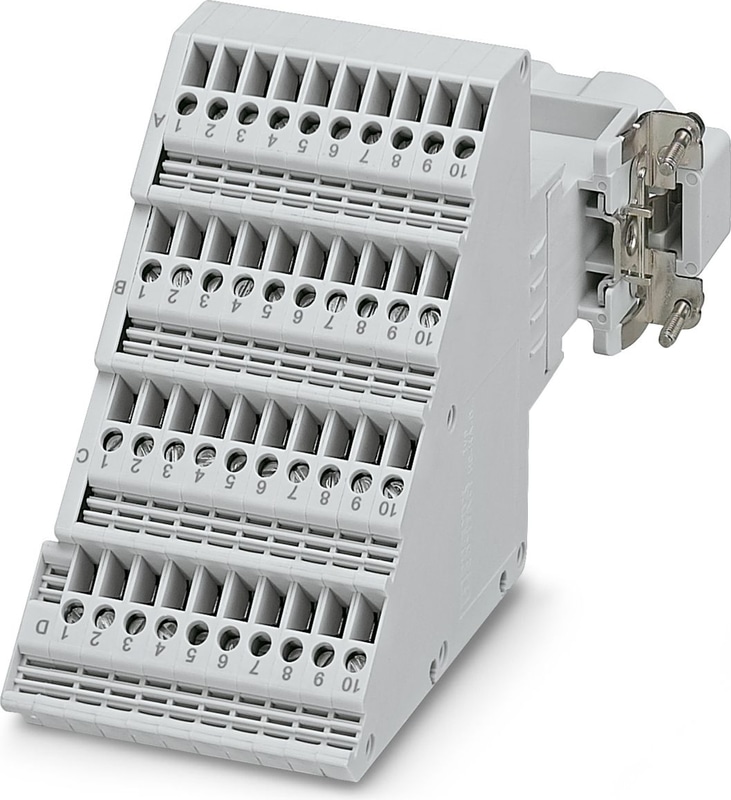

HEAVYCON terminal adapter male insert, D40 series, 40-pos., left PE connection for the right side of the control cabinet, screw connection
Documents
Technical Specifications
Notes
General | For HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B16 type |
General | Connectors may be operated only when there is no load/voltage. |
Product properties
Product family | HC-D |
Series | HC-D |
Type | B16 |
Number of Positions | 40 |
Connection profile | 40+PE |
Type | for the right side of the control cabinet |
Screwdriver blade | 0.5 x 3.5 mm |
Insulation characteristics
Overvoltage category | III |
Degree of pollution | 3 |
Electrical properties
Rated voltage (III/3) | 250 V |
Rated surge voltage | 4 kV |
Rated current | 10 A |
SCCR | 5 kA (UL 2237) |
Connection technology
Connection technology | Screw connection |
Connection in acc. with standard | IEC / EN |
Conductor connection
Conductor Cross Section | 0.5 mm² ... 2.5 mm² |
Connection cross section AWG | 22 ... 12 |
Tightening torque | 0.5 Nm ... 0.8 Nm |
Stripping length of the individual wire | 10 mm |
Dimensions
Width | 34 mm |
Height | 129.9 mm |
Length | 83 mm |
Drill hole distance, horizontal | 77.5 mm |
Drill hole distance, vertical | 27 mm |
Material specifications
Flammability rating according to UL 94 | V0 |
Contact Material | Copper alloy |
Contact surface material | Ag |
Contact carrier material | PA |
Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Cable/line
Stripping length of the individual wire | 10 mm |
Mechanical data
Insertion/withdrawal cycles | ≥ 500 |
Ambient conditions
Ambient Temperature (Operation) | -40 °C ... 125 °C |
Standards and Regulations
Constructional and testing regulations | DIN EN 61984 |
Constructional and testing regulations | DIN EN 60664 |
Constructional and testing regulations | IEC 60352 |
Tests | DIN EN 61984 |
Tests | DIN EN 60664 |
Tests | IEC 60352 |
Testing
Standards/regulations | PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Mounting
Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
Assembly note | Not for HC-EVO panel mounting bases |
Assembly note | Connectors may be plugged in only when there is no load/voltage. Not for HC-B 16-AMQ-EMV housings |
