Official DistributorSKU

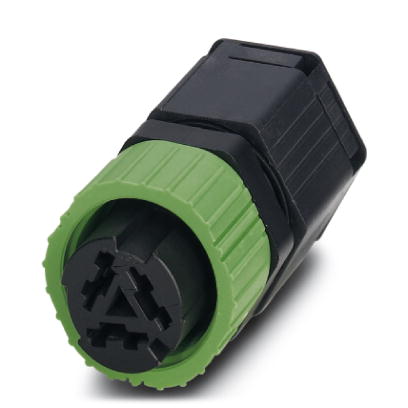

QUICKON connector, 3-pos., black with green knurled nut and QUICKON lock nut
Technical Specifications
| Connection | If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
| Color | green |
| Connection Method | IDC |
| Wrench size, union nut | 24 mm |
| Tightening torque, union nut | 2.5 Nm |
| Number of Connections | 3 |
| Conductor cross section flexible min. | 0.75 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 18 |
| Conductor cross section AWG max. | 16 |
| Wire insulation material | PVC / PE |
| Wire diameter including insulation | 9.2 mm |
| External Cable Diameter | 9.3 mm |
| Degree of Protection | IP65, IP67 |
| Ambient Temperature (Operation) | -25 °C ... 80 °C |
| Ambient temperature (storage/transport) | -25 °C ... 80 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Rated voltage (III/3) | 250 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 630 V |
| QUICKON connectability | 10 |
| Contact Material | Cu alloy, tin-plated |
| Contact carrier material | PA |
| Flammability rating according to UL 94 | VO |
Why Proax for Phoenix Contact 1582501?
Proax is an authorized distributor of Phoenix Contact 1582501 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
