Official DistributorSKU
MPN
SACC-M12FSB-4SC SH
Weight
0.047 kg
Series SACC-M

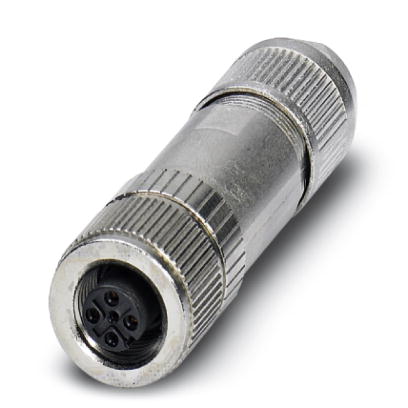

SACC-M12FSB-4SC SH - Connector
Connector, 4-position, shielded, Socket straight M12, coding: B, Spring-cage connection, knurl material: Brass, nickel-plated, external cable diameter 4 mm ... 8 mm
SACC-M
The Phoenix Contact SACC-M Series comprises M8 circular connectors designed for reliable and efficient connections in industrial automation applications. These connectors are engineered to provide secure signal and data transmission between sensors, actuators, and control systems.
Key Features:
Connector Types: The SACC-M Series offers a variety of M8 connectors, including both straight and angled configurations, as well as plug and socket versions, to accommodate diverse installation requirements.
Connection Methods: Multiple connection methods are available within the series, such as screw connections, solder connections, and Piercecon® fast connections, providing flexibility for different wiring preferences.
Durable Materials: Constructed with robust materials like nickel-plated brass for knurl components and high-quality plastics for grip bodies, these connectors ensure durability and longevity in demanding industrial environments.
Coding: Equipped with A-coding, the connectors are standardized for sensor/actuator applications, ensuring compatibility across various devices.
Technical Specifications
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| External Diameter | 4 mm ... 8 mm |
| Degree of Protection | IP67 |
| Nominal Voltage | 60 V |
| Number of Positions | 4 |
| Connection Method | Spring-cage conn. |
| Conductor Cross Section | 0.14 mmu00b2 ... 0.5 mmu00b2 |
| AWG Conductor Cross Section | 26 ... 20 |
| Contact Material | CuSn |
Why Proax for Phoenix Contact 1570733?
Proax is an authorized distributor of Phoenix Contact 1570733 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
