Name: 1557280
Brand: Phoenix Contact
SKU: PHX1557280

Official Distributor

By Phoenix Contact

SKU

MPN

SAC-2P-ASIFK/ 1,0-PUR/M12FS P

Weight

0.081 kg

Series SAC-2P

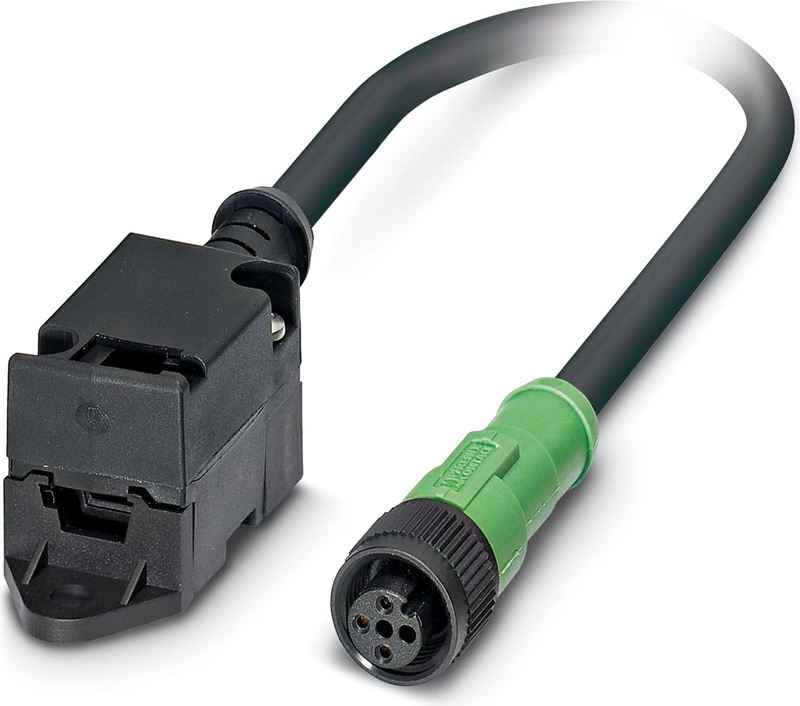

SAC-2P-ASIFK/ 1,0-PUR/M12FS P - Bus system cable

Bus system cable, AS-Interface, 2-position, Plug straight AS-i, on Socket straight M12, coding: A, cable length: 1 m, with plastic knurl

Product properties

Sensor Type	AS-Interface
Number of Positions	2
No. of cable outlets	1
Coding	A

Insulation characteristics

Overvoltage category	II
Degree of pollution	3

Interfaces

Bus system	AS-Interface
Signal type/category	AS-Interface

Signaling

Status display	No
Status display present	No

Electrical properties

Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	30 V AC
Nominal voltage U_N	30 V DC
Nominal current I_N	2 A

Mechanical data

Insertion/withdrawal cycles

≥ 100

Material specifications

Flammability rating according to UL 94	HB
Seal material	NBR
Outer sheath, material	PUR
Conductor material	Bare Cu litz wires

Connection 1

Type	Plug straight AS-i

Connection 2

Type	Socket straight M12
Coding type	A (Standard)
Material	CuSn (Contact)
Material	Ni/Au (Contact surface)
Material	TPU GF (Contact carriers)
Material	TPU, hardly inflammable, self-extinguishing (Grip)
Material	Plastic (Screw connection)

Cable/line

Cable Length	1 m
Cable Type	PUR/PVC black
Signal type/category	AS-Interface
External Cable Diameter	5.80 mm
Outer sheath, material	PUR
External sheath, color	black RAL 9005
Single wire, color	brown, blue
Cable cross section	0.75 mm²
Material, inner sheath	PVC
Conductor material	Bare Cu litz wires
AWG Signal Line	18
Material wire insulation	PVC

Ambient conditions

Degree of Protection	IP67
Ambient Temperature (Operation)	-25 °C ... 90 °C (Plug / socket)
Ambient Temperature (Operation)	-25 °C ... 70 °C (Flat-ribbon cable terminal block)
Ambient Temperature (Operation)	-25 °C ... 80 °C (cable, fixed installation)
Ambient Temperature (Operation)	-25 °C ... 80 °C (Cable, flexible installation)
