Official DistributorThis item is Not Cancellable/Not Returnable.
SKU
PHX1553941
MPN
1553941
Weight
0.357 kg

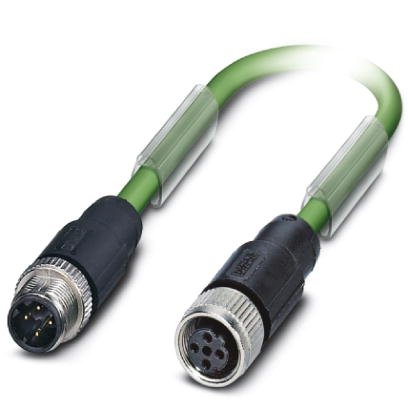

NBC-M12MSD/ 5,0-93B/M12FSD CMC - Network cable, PROFINET CAT5 (100 Mbps), EtherCAT® CAT5 (100 Mbps), 4-position, PVC/PVC, green RAL 6018, shielded (Aluminum-coated foil, tinned copper braided shield), Advanced Shielding Technology, Plug straight M12, coding: D / IP67, on Socket straight M12, coding: D / IP67, cable length: 5 m
Documents
Technical Specifications
| Nominal Voltage | 250 V |
| Length of Cable | 5 m |
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Degree of Protection | IP68 |
| Number of Positions | 4 |
| Contact Material | CuSn |
| Cable Type | PROFINET PVC stranded CAT5e |
| Conductor Cross Section | 4x 0.34 mmu00b2 |
| AWG Signal Line | 22 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (cable, flexible installation) |
| Cable Nominal voltage | 600 V |
| Resistance to Oil | Resistant to oil to a limited extent |
