1553488
Official DistributorSKU
PHX1553488
MPN
SACC-DSI-M12MS-12CON-M12
Weight
0.011 kg
Series SACC-DSI-M

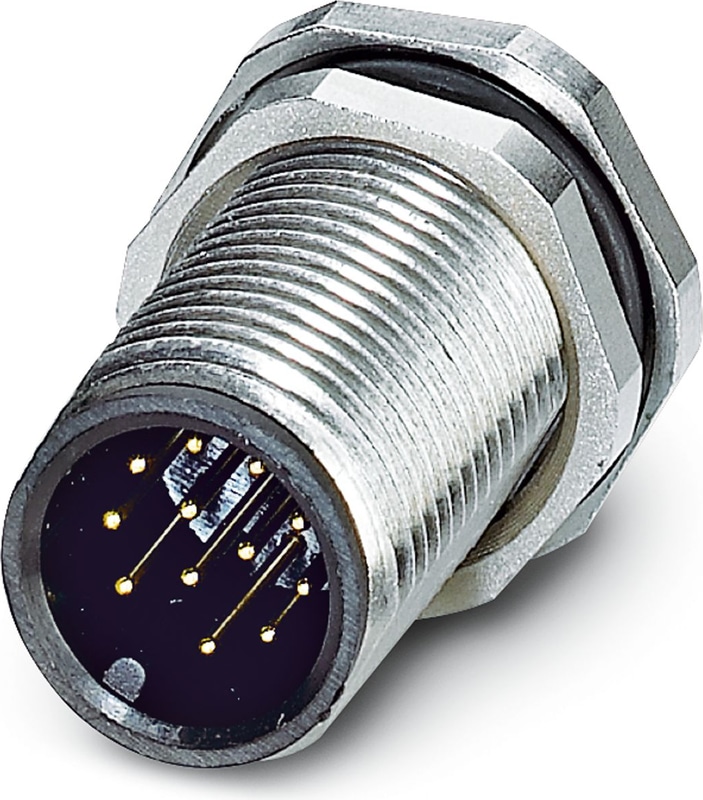

SACC-DSI-M12MS-12CON-M12 - Device connector rear mounting
Sensor/actuator flush-type plug, 12-pos., M12, rear/screw mounting with M12 thread, with straight solder connection
Technical Specifications
Mounting
| Mounting Type | Rear mounting |
Product properties
| Sensor Type | Universal |
| Number of Positions | 12 |
| Shielded | no |
| Coding | A |
| Thread type | M12 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | V0 |
Electrical properties
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V |
| Nominal current IN | 1.5 A |
Conductor connection
| Connection Method | Wave soldering |
| Contact connection type | Pin |
Connection 1
| Head design | Pin |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | A |
Cable/line
| Signal type/category | Universal |
Ambient conditions
| Degree of Protection | IP67 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug) |
M12
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
Why Proax for Phoenix Contact 1553488?
Proax is an authorized distributor of Phoenix Contact 1553488 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 20 |
