Official DistributorBy ABB
SKU
MPN
1TQX241721L0272
Weight
1 kg

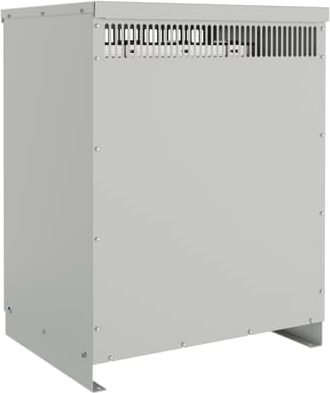

ABB's Drive Isolation Transformers (DIT) are designed to specifically handle the mechanical stresses, voltage distortions, and harmonics associated with silicon-controlled rectifiers (SCR) or Thyristor applications. Drive Isolation Transformers have symmetrically placed taps and added coil bracing to withstand the mechanical forces caused by severe SCR or thyristor duty cycles. These features also help to protect the transformer from the regenerative duty and more frequent momentary short-circuits associated with SCR commutation.
Technical Specifications
Technical
| Primary Voltage | 230 V AC |
| Secondary Voltage | 230Y V AC |
| Secondary Voltage | 133 V AC |
| Primary Rated Impulse Withstand Voltage | 10 kV |
| Frequency (f) | 60 Hz |
| Apparent Power Output | 40 kV·A |
| Connection configuration | Delta Primary; Wye Secondary |
| Number of phases | 3 |
| Insulation Class | 220°C,ClassR |
| Accessory Type | Rain Shield kit, Lug Kit, Ground Kit |
| Enclosure Type NEMA | Type2 |
| Transformer Type | Drive Isolation |
| Housing Material | Painted Steel |
| Material of Conductor | Aluminum |
| Accessories Available | Yes |
| Color | ANSI 61 Gray |
Dimensions
| Product Net Width | 23.8 in |
| Product Net Width | 604.6 mm |
| Product Net Height | 32.2 in |
| Product Net Height | 817.9 mm |
| Product Net Depth / Length | 18.4 in |
| Product Net Depth / Length | 467.4 mm |
| Product Net Weight | 415 lb |
| Product Net Weight | 188.3 kg |
| Dimension Diagram | 303B401AAP073 |
Installation
| Instructions and Manuals | 9AKK107991A2142 |
Why Proax for ABB 9T83B4004G29?
Proax is an authorized distributor of ABB 9T83B4004G29 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
