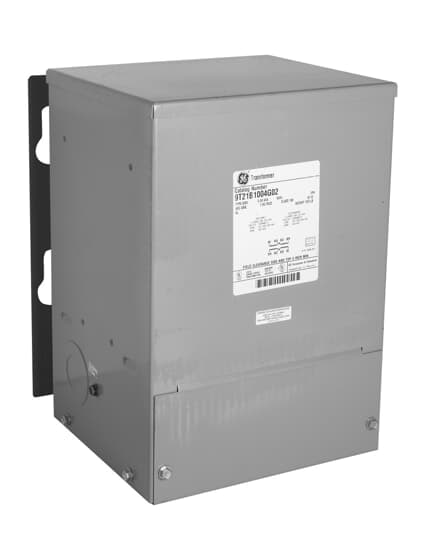

9T21B9105
Official DistributorBy ABB
SKU
ABB9T21B9105
MPN
1TQY133532D1001
Weight
122.472 kg
This item is ineligible for free shipping due to its size/weight.
ABB's Type QMS small power transformers come standard in NEMA 3R nonventilated weatherproof enclosures. These units feature encapsulated copper core and coils with an integrated junction box that includes a ground lug for easy wiring. Improved termination spacing and wiring compartment room gives greater flexibility in selecting various UL listed connectors for either copper or aluminum cable. QMS transformer enclosures feature built in wall mount tabs. The Type QMS transformers are RoHS compliant, UL and cUL Listed. Qualified to the seismic requirements of IEEE-693-2005 and IBC-2021 and CBC 2022.
Technical Specifications
Technical
| Apparent Power Output | 15 kV·A |
| Connection configuration | Single Phase, Single Phase |
| Insulation Class | 180 °C, Class H |
| Enclosure Type NEMA | Type3R |
| Transformer Type | Encapsulated |
| Material of Conductor | Aluminum |
| Product Frame Size | 19550 |
| Temperature Rise | 115 °C |
Electrical
| Primary Voltage | 480 V AC |
| Secondary Voltage | 120/240 V AC |
| Frequency (f) | 60 Hz |
Design
| Housing Material | Painted Steel |
| Color | ANSI 61 Grey |
Dimensions
| Product Net Width | 12.38 in |
| Product Net Width | 314.46 mm |
| Product Net Height | 17 in |
| Product Net Height | 431.8 mm |
| Product Net Depth / Length | 12.44 in |
| Product Net Depth / Length | 315.98 mm |
| Product Net Weight | 270 lb |
| Product Net Weight | 122.47 kg |
| Dimension Diagram | 303B923AAP015 |
Why Proax for ABB 9T21B9105?
Proax is an authorized distributor of ABB 9T21B9105 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
