1542648
Official DistributorSKU
PHX1542648
MPN
SACC-DSIV-FSD-4CON-L180 SCOTHR
Weight
0.011 kg
Series SACC-DSIV-FSD

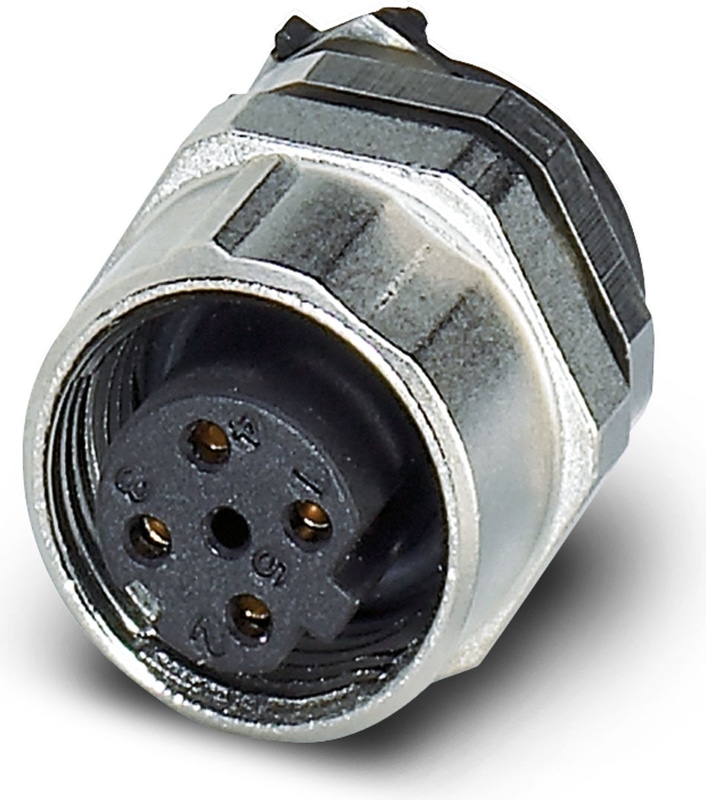

SACC-DSIV-FSD-4CON-L180 SCOTHR - Device connector rear mounting
Device connector rear mounting, 4-position, Socket, straight, M12-SPEEDCON, coding: D, Rear mounting, M12 x 1, THR solder connection, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239956
Technical Specifications
Notes
| General | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) |
| Order information: | Lock nut is included in the scope of delivery |
Mounting
| Mounting Type | Rear mounting M12 x 1 With flat nut |
| Assembly instructions | With flat nut |
Product properties
| Number of Positions | 4 |
| Shielded | no |
| Coding | D |
| Thread type | M12 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | FKM / EPDM |
| Contact Material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PPA |
| Material for screw connection | Zinc die-cast, nickel-plated |
Electrical properties
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 250 V |
| Nominal current IN | 4 A |
Conductor connection
| Connection Method | THR solder connection |
| Contact connection type | Socket |
Connection 1
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M12 |
| Head locking type | SPEEDCON |
| Coding | D |
Ambient conditions
| Degree of Protection | IP67 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug / socket) |
Why Proax for Phoenix Contact 1542648?
Proax is an authorized distributor of Phoenix Contact 1542648 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 60 |
