Phoenix Contact 1539570
AllRelaysSafety Relays

1539570

Official Distributor

By Phoenix Contact

SKU
PHX1539570
MPN
SAC-2P-M12MS ASI TR
Weight
0.01 kg
Series SAC-2P

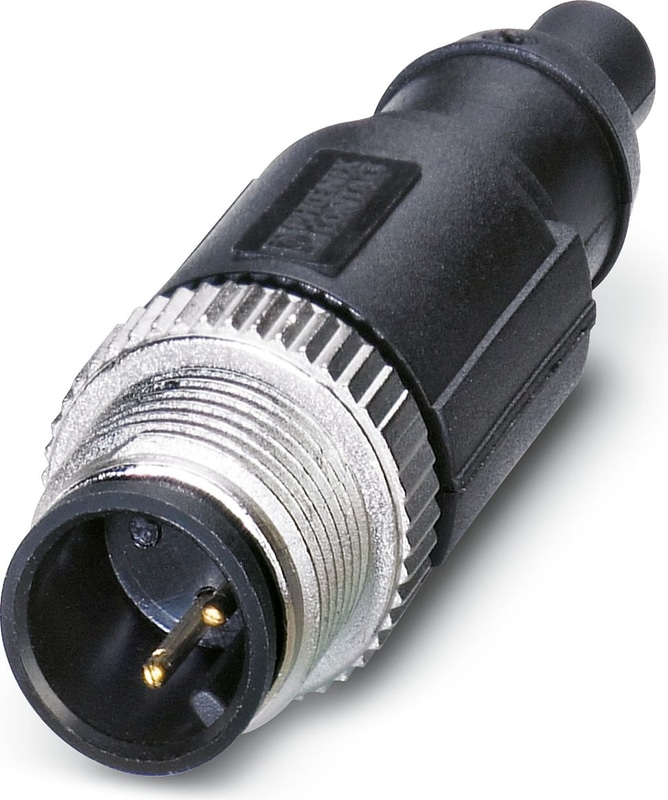

SAC-2P-M12MS ASI TR - Short-circuit connector

Short-circuit plug, for bridging unused slots on PSR-SACB sensor box for safety limit switch

Technical Specifications

Product properties

Number of Positions2
CodingA

Insulation characteristics

Overvoltage categoryII
Degree of pollution3

Electrical properties

Nominal voltage UN48 V AC
Nominal voltage UN60 V DC
Nominal current IN4 A

Signaling

Status displayNo
Status display presentNo

Material specifications

Flammability rating according to UL 94HB
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Contact MaterialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material for screw connectionZinc die-cast, nickel-plated

Connection 1

TypePlug straight M12
Number of Positions2
Coding typeA

Mechanical data

Insertion/withdrawal cycles≥ 100

Ambient conditions

Degree of ProtectionIP65
Degree of ProtectionIP67
Degree of ProtectionIP68
Ambient Temperature (Operation)-25 °C ... 90 °C (Plug)

Why Proax for Phoenix Contact 1539570?

Proax is an authorized distributor of Phoenix Contact 1539570 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size5
