SAC-3P-M12MS/B-1L-S - Valve connectors

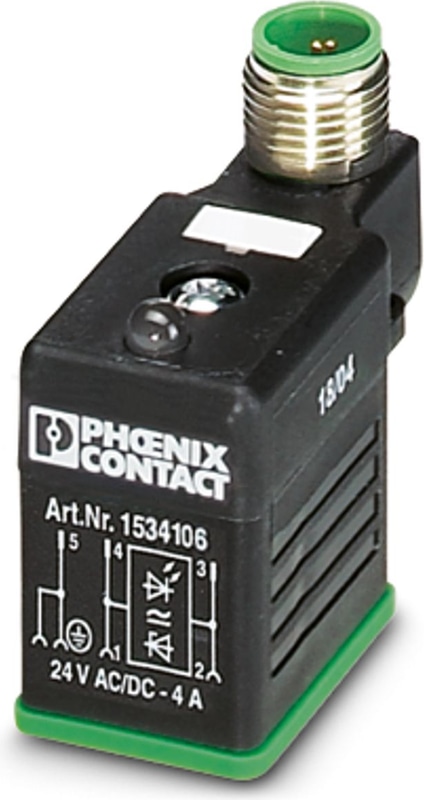

Valve connector type B, 11 mm contact spacing, vertical connector M12
SAC-3P
The Phoenix Contact SAC-3P Series comprises sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These 3-position cables are available in various configurations to accommodate different connectivity requirements.
Key Features:
Connector Types: The series offers cables with M8 and M12 connectors, available in both straight and angled orientations, providing flexibility for diverse installation scenarios.
Cable Materials: Cables are constructed with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
Product properties
| Number of Positions | 3 |
| No. of cable outlets | 1 |
| Coding | A |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Connection data
| Connection Method | M12 connector |
| Tightening torque | 0.4 Nm (M12 connector) |
| Tightening torque | 0.6 Nm (Valve connector) |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 24 V AC |
| Nominal voltage UN | 24 V DC |
| Nominal current IN | 4 A |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | TPU |
| Material housing valve plug | PBT |
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Contact Material | CuSn |
| Valve plug contact insert material | PBT |
| Contact surface material | Ag |
| Material for screw connection | Zinc die-cast, nickel-plated |
Signaling
| Status display | Yellow LED |
| Status display present | Yes |
Connection 1
| Type | Plug straight M12 |
| Number of Positions | 3 |
| Coding type | A |
Connection 2
| Type | Valve connector B (10 mm) |
| Number of Positions | 3 |
| Material | CuSn (Contact) |
| Material | Ag (Contact surface) |
| Material | PBT (Contact carriers) |
| Material | PBT (Housing) |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (valve plug) |
M12
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
Valve connector
| Standard designation | Valve connector |
| Standards/specifications | EN 175301-803 |
