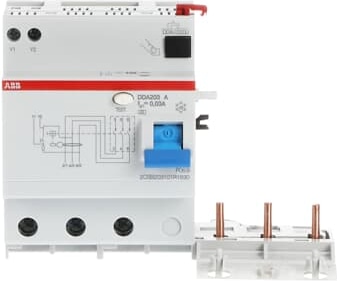

DDA203 A-63/0.03
Official DistributorBy ABB
SKU
ABB2CSB203101R1630
MPN
2CSB203101R1630
Weight
0.311 kg
The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial.
Technical Specifications
ABB EcoSolutions
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108471A0995 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 69.47 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard - 85.84 % |
| Sustainable Material Content in Packaging (wt. %) | Recycled Paper - 0 % |
| Sustainable Material Content in Packaging (wt. %) | Recycled Paper - 0 % |
| Extended Product Lifetime | Product Durability |
| End Of Life Disassembling Instructions | 9AKK108469A7485 |
| Environmental Product Declaration - EPD | 9AKK108469A8934 |
Technical
| Type of Residual Current | Type A |
| Leakage Current Type | A |
| Power supply connection | Arbitrary |
| Electrical Endurance | 10000 cycle |
| Number of Poles | 3P |
| Number of Modular Spacings per DIN Rail | 7 |
| Operating Characteristic | Instantaneous |
| Connecting Capacity | Rigid 25 ... 25 mm² |
| Connecting Capacity | Flexible 25 ... 25 mm² |
Electrical
| Short-circuit current rating (SCCR) | 0.03 ... 0.03 A |
| Rated voltage (UR) | 230/400 V |
| Rated Operational Voltage | 230/400 V |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Current (In) | 63 A |
| Rated Residual Current | 30 mA |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | 7.6 W |
Design
| Number of Modules | 7 |
Dimensions
| Product Net Width | 122 mm |
| Product Net Height | 93 mm |
| Product Net Depth / Length | 76 mm |
| Product Net Weight | 311 g |
Installation
| Instructions and Manuals | 9AKK108467A7091 |
Why Proax for ABB DDA203 A-63/0.03?
Proax is an authorized distributor of ABB DDA203 A-63/0.03 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | DDA203A63003 |
| Pack Size | 1 |
