Name: 1529519
Brand: Phoenix Contact
SKU: PHX1529519

M12 flush-type plug

Official Distributor

By Phoenix Contact

SKU

MPN

SACC-DSI-M12MS-8CON-L180

Weight

0.015 kg

Series SACC-DSI-M

SACC-DSI-M12MS-8CON-L180 - Flush-type connector

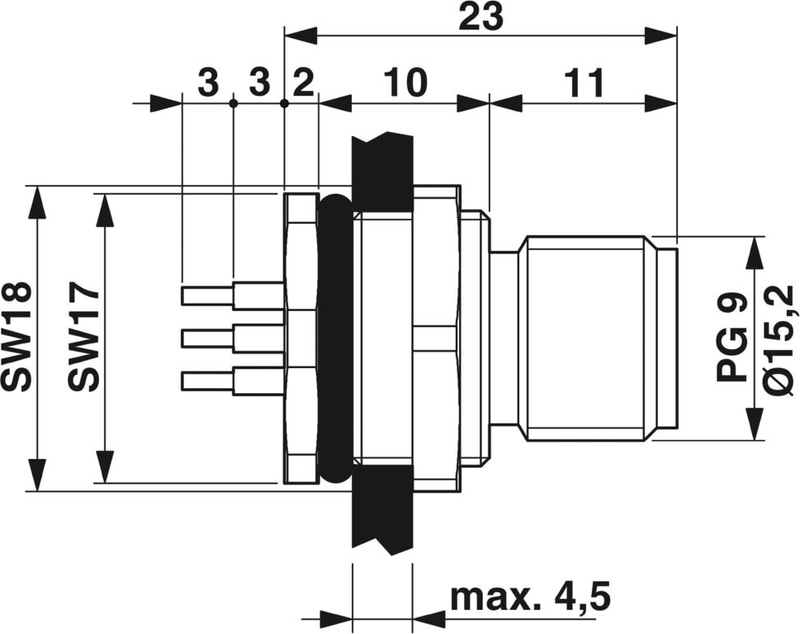

Sensor/actuator flush-type plug, 8-pos., M12, rear/screw mounting with Pg9 thread, with straight solder connection

Product properties

Number of Positions

Insulation characteristics

Overvoltage category	II
Degree of pollution	3

Electrical properties

Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	30 V
Nominal current I_N	2 A

Connection data

Connection Method

Solder pins

Signaling

Status display	No
Status display present	No

Material specifications

Flammability rating according to UL 94

Ambient conditions

Degree of Protection	IP67
Degree of Protection	IP67
Ambient Temperature (Operation)	-25 °C ... 85 °C
