Official DistributorSKU
MPN
SAC-2P-MSB/ 5,0-910/FSB SCO
Weight
0.329 kg
This product is Not Cancellable/Not Returnable
Series SAC-2P

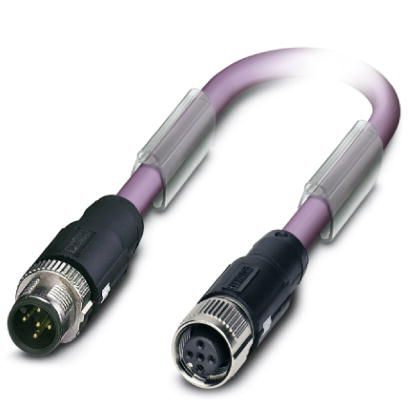

Bus system cable - SAC-2P-MSB/ 5,0-910/FSB SCO
Bus system cable, PROFIBUS (12 Mbps), 2-position, PUR halogen-free, violet RAL 4001, shielded, Plug straight M12 SPEEDCON, coding: B, on Socket straight M12 SPEEDCON, coding: B, cable length: 5 m
Technical Specifications
Dimensions
| Length of Cable | 5 m |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
General
| Rated current at 40°C | 4 A |
| Rated voltage | 48 V AC |
| Rated voltage | 60 V DC |
| Number of Positions | 2 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | B - inverse |
| Signal type/category | PROFIBUS, 12 Mbps (max. 100 m) |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Torque | 0.4 Nm (M12 connector) |
Material
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 2 (Plug) = GN (A cable) = 2 (Socket) |
| Contact | Color (signal designation) | Contact (optional) | 4 (Plug) = RD (B cable) = 4 (Socket) |
Cable
| Cable Type | PROFIBUS |
| Cable type (abbreviation) | 910 |
| UL AWM style | 21198 (80°C/300 V) |
| Cable structure | 1x2xAWG24/19 |
| Conductor Cross Section | 2x 0.25 mm² (Signal line) |
| AWG Signal Line | 24 |
| Conductor structure signal line | 19x 0.13 mm |
| Core diameter including insulation | 2.55 mm ±0.07 mm |
| Wire colors | Red, green |
| Overall twist | 2 cores with 2 fillers to the core |
| Shielding | Plastic-coated aluminum foil, tinned copper braided shield |
| Optical shield covering | 85 % |
| External cable diameter D | 7.8 mm ±0.2 mm |
| Smallest bending radius, fixed installation | 40 mm |
| Smallest bending radius, movable installation | 65 mm |
| Number of bending cycles | 4000000 |
| Bending Radius | 65 mm |
| Traversing path | 4.5 m |
| Traversing rate | 3 m/s |
| Acceleration | 3 m/s² |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Number of bending cycles | 5000000 |
| Bending Radius | 80 mm |
| Traversing path | 4.5 m |
| Traversing rate | 3 m/s |
| Acceleration | 3 m/s² |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Cable weight | 90 kg/km |
| External sheath, color | violet RAL 4001 |
| Outer sheath, material | PUR |
| Material, filler | PP |
| Material conductor insulation | Foam-Skin PP |
| Conductor material | Tin-plated Cu litz wires |
| Insulation resistance | ≥ 5 GΩ*km |
| Conductor resistance | ≤ 78.6 Ω/km |
| Cable capacity | nom. 30 pF/m |
| Wave impedance | 150 Ω ±10 % (3 MHz ... 20 MHz) |
| Attenuation | ≤ 0.049 dB/m (at 16 MHz) |
| Nominal voltage, cable | 300 V |
| Test voltage Core/Core | 1500 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 1500 V (50 Hz, 1 min.) |
| Other resistance | Low adhesion |
| Flame resistance | UL 1581, Section 1060 and UL 2556, Section 9.3 (FT1) |
| Flame resistance | UL 1581, Section 1100 and UL 2556, Section 9.1 (HFT/FT2) |
| Flame resistance | IEC 60332-1-2 |
| Halogen-free | in accordance with DIN VDE 0472 part 815 |
| Halogen-free | according to IEC 60754-1 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -30 °C ... 70 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | -20 °C ... 60 °C (for installation) |
| Ambient Temperature (Operation) | -20 °C ... 60 °C (cable, drag chain applications) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
