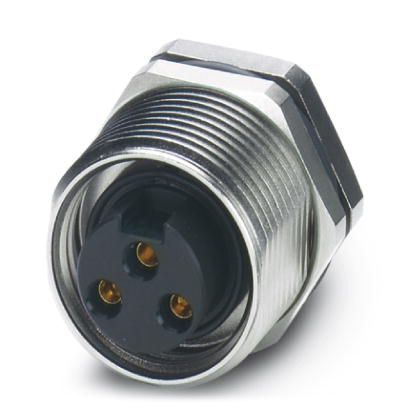

The figure shows the 3-pos. version
1457775
Official DistributorSKU
PHX1457775
Flush-type connector - SACC-DSI-MINFS-5CON-M26 PCB
Sensor/actuator flush-type socket, 5-pos., 7/8", PCB mounting with M26 fastening thread
Technical Specifications
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 85 °C (Socket) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (Socket) |
| Degree of Protection | IP67 |
General
| Rated current at 40°C | 9 A |
| Rated voltage | 250 V |
| Number of Positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection Method | Solder pins |
| Mounting Type | PCB mounting M26 |
| Thread type | M26 |
Material
| Flammability rating according to UL 94 | HB |
| Contact Material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PUR |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | Viton |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Why Proax for Phoenix Contact 1457775?
Proax is an authorized distributor of Phoenix Contact 1457775 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
