SACC-VB-4CON-M16/A
Weight
0.027 kg
Series SACC-VB

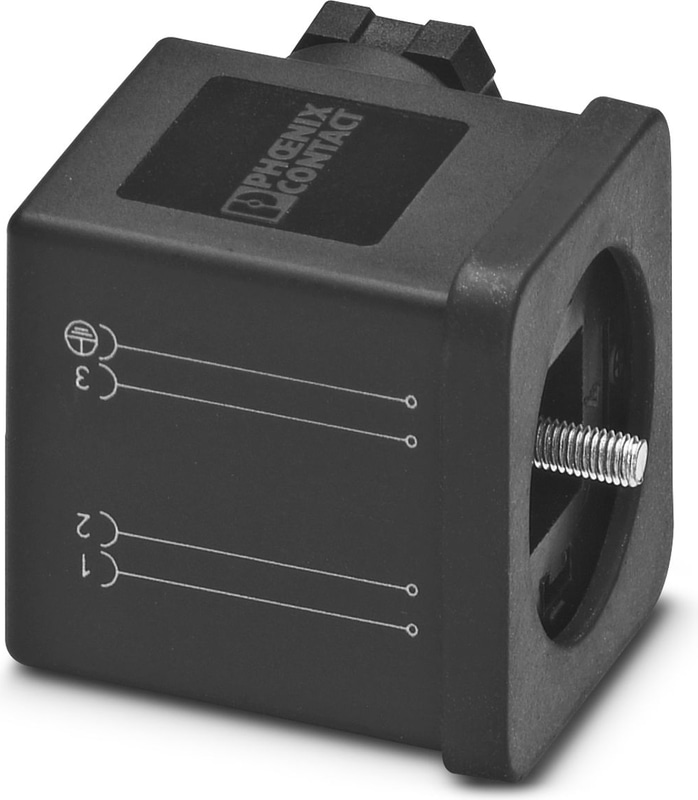

SACC-VB-4CON-M16/A - Valve connectors
Valve connectors, Universal, 4-position, Valve connector AD (pressure switch), Screw connection, cable gland M16, external cable diameter 6 mm ... 8 mm
Technical Specifications
Notes
| Assembly instruction: | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
Product properties
| Sensor Type | Universal |
| Number of Positions | 4 |
| No. of cable outlets | 1 |
| Shielded | no |
| Pg screw connection | M16 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material housing valve plug | PA |
| Contact Material | CuZn |
| Contact surface material | CuSn |
Dimensions
| Width | 28 mm |
| Height | 31.5 mm |
| Length | 50 mm |
External dimensions
| Outside diameter | 6 mm ... 8 mm |
Electrical properties
| Contact resistance | ≤ 4 mΩ |
| Insulation resistance | > 2 GΩ |
| Nominal voltage UN | 230 V AC |
| Nominal voltage UN | 230 V DC |
| Nominal current IN | 10 A |
| Protective circuit | unwired |
Valve connector characteristics
| Fixing screws | M3 x 33,5 |
Mechanical data
| Insertion/withdrawal cycles | 50 (Valve connector) |
Signaling
| Status display present | No |
Connection data
| Connection Method | Screw connection |
| Conductor Cross Section | 0.25 mm² ... 1.5 mm² |
| Connection cross section AWG | 24 ... 16 |
| Tightening torque | 1.8 Nm ±0.2 Nm (Pressure screw) |
| Tightening torque | 0.4 Nm ±0.1 Nm (Central screw) |
| Tightening torque | 0.2 Nm ±0.1 Nm (Contact screw) |
Connection 1
| Head design | Valve connector |
| Head thread type | AD (pressure switch) |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -25 °C ... 60 °C (valve plug) |
Standards and Regulations
| Standard designation | Valve connector |
| Standards/specifications | EN 175301-803 |
