Series SACCBP-FS

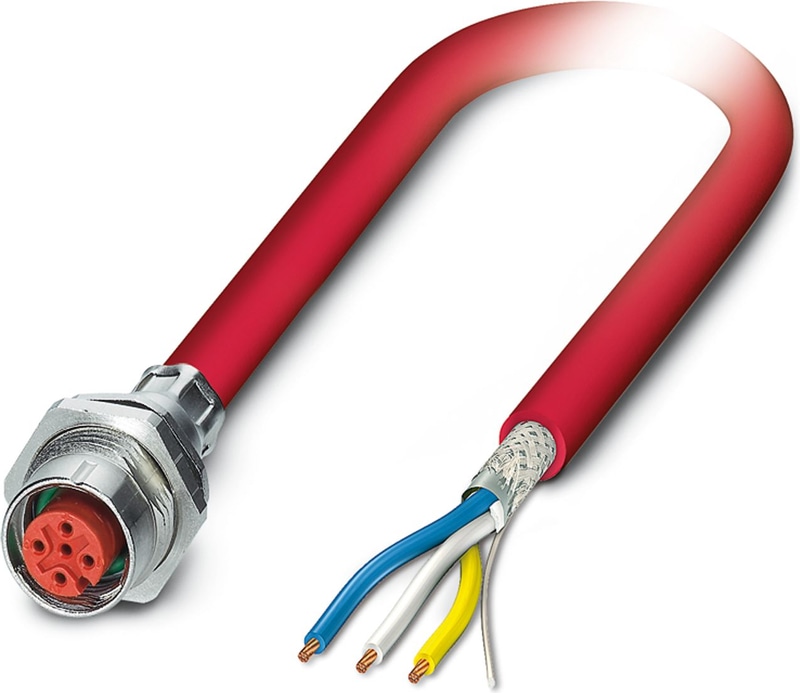

SACCBP-FS-4CON-PG9/2,0-990SCO - Bus system flush-type socket

Bus system flush-type socket, CC-Link, 4-pos., M12, SPEEDCON, shielded, rear/screw mounting with Pg9 thread, with 2.0 m bus cable

  • Preassembled with cables in various standard lengths for immediate use
  • Customer-specific assemblies and cable lengths can be supplied
  • Sealed on the cable side for optimum tightness of seal
  • Cable designs for all common networks and fieldbuses
  • For high transmission safety: shield connection to the housing with optional EMC nut
Technical Specifications

Notes

Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.

Safety note

Safety noteWARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
Safety note• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Safety note• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
Safety note• The products are suitable for applications in plant, controller, and electrical device engineering.
Safety note• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
Safety note• Assembled products may not be manipulated or improperly opened.
Safety note• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
Safety note• When using the product in direct connection with third-party manufacturers, the user is responsible.
Safety note• For operating voltages > 50 V AC, conductive connector housings must be grounded
Safety note• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
Safety note• Observe the corresponding technical data. You will find information:o On the producto On the packing labelo In the supplied documentationo Online at phoenixcontact.com/products under the product
Safety note• Only use tools recommended by Phoenix Contact
Safety note• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
Safety note• Ensure that the protective or functional ground has been properly connected.
Safety note• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
Safety note• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).

Mounting

Mounting TypeRear mounting

Product properties

Sensor TypeCC link
Number of Positions4
Shieldedyes
CodingA

Insulation characteristics

Overvoltage categoryII
Degree of pollution3

Material specifications

Flammability rating according to UL 94V0
Seal materialFKM
Contact MaterialCuZn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Outer sheath, materialPVC

Electrical properties

Rated surge voltage2.5 kV
Contact resistance≤ 3 mΩ
Insulation resistance≥ 10 MΩ
Nominal voltage UN250 V AC
Nominal current IN4 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed)
Transmission mediumCopper

Mechanical data

Insertion/withdrawal cycles> 100

Cable/line

Cable Length2 m

CC-Link [990]

Shieldedyes
Cable weight78.8 kg/km
Cable TypeCC-Link
Cable type (abbreviation)990
Signal type/categoryCC link, 10 Mbps
Cable structure3xAWG20/7 + 1xAWG22/19 (filler litz wire)
External Cable Diameter7.70 mm
Outer sheath, materialPVC
External sheath, colorred
Conductor materialBare Cu litz wires
Conductor structure signal line7x 0.28 mm
AWG Signal Line20
Conductor Cross Section0.5 mm²
Material wire insulationfoamed PE, with high density
Thickness, insulation0.89 mm (Outer cable sheath)
Single wire, colorwhite, yellow, blue
ShieldingPlastic-coated aluminum foil, tinned copper braided shield
Optical shield covering78 %
Nominal voltage, cable300 V
Cable resistance31.2 Ω/km
Wave impedance110 Ω
Working capacitance61 pF
Smallest bending radius, fixed installation77 mm
Ambient Temperature (Operation)-5 °C ... 60 °C (Cable, flexible installation)
Ambient Temperature (Operation)-30 °C ... 60 °C (cable, fixed installation)

Ambient conditions

Degree of ProtectionIP67 (When plugged in)
Degree of ProtectionIP65 (When plugged in)
Degree of ProtectionIP65/IP67
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug / socket)
Ambient Temperature (Operation)-40 °C ... 85 °C (without mechanical actuation)
