1437740
Official DistributorSKU
PHX1437740
This product is Not Cancellable/Not Returnable

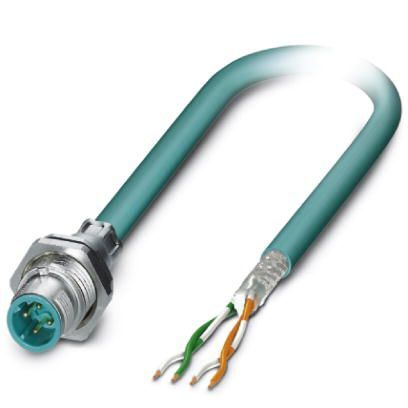

Bus system flush-type plug - SACCBP-MSD-4CON-PG9/2,0-931SCO
Bus system flush-type plug, Ethernet, 4-pos., M12 SPEEDCON, shielded, D-coded, rear/screw mounting with Pg9 thread, with 2.0 m bus cable, 2 x 2 x 0.2 mm²
Technical Specifications
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug / socket) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (without mechanical actuation) |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug / socket) |
| Degree of Protection | IP67 (When plugged in) |
| Degree of Protection | IP65 (When plugged in) |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Rated current at 40°C | 1.5 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed) |
| Rated voltage | 48 V AC |
| Rated voltage | 60 V DC |
| Number of Positions | 4 |
| Coding | D - data |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Signal type/category | Ethernet CAT5 (IEC 11801:2002), 100 Mbps |
| Signal type/category | Ethernet |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Transmission characteristics (category) | CAT5 |
Material
| Flammability rating according to UL 94 | V0 |
| Contact Material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material, knurls | Nickel-plated brass |
| Sealing material | NBR |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-101 |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Safety note | • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. |
| Safety note | • The products are suitable for applications in plant, controller, and electrical device engineering. |
| Safety note | • When operating the connectors in outdoor applications, they must be separately protected against environmental influences. |
| Safety note | • Assembled products may not be manipulated or improperly opened. |
| Safety note | • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). |
| Safety note | • When using the product in direct connection with third-party manufacturers, the user is responsible. |
| Safety note | • For operating voltages > 50 V AC, conductive connector housings must be grounded |
| Safety note | • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. |
| Safety note | • Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product |
| Safety note | • Only use tools recommended by Phoenix Contact |
| Safety note | • Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products |
| Safety note | • Ensure that the protective or functional ground has been properly connected. |
| Safety note | • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector |
| Safety note | • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
Cable
| Cable Type | Ethernet flexible CAT5, 2-pair |
| Cable type (abbreviation) | 93E |
| UL AWM style | 20963 (80°C/30 V) |
| Signal type/category | Ethernet CAT5 (IEC 11801), 100 Mbps |
| Cable structure | 2x2xAWG26/7; SF/UTP |
| Conductor Cross Section | 2x 2x 0.14 mm² |
| AWG Signal Line | 26 |
| Conductor structure signal line | 7x 0.16 mm |
| Core diameter including insulation | 0.98 mm |
| Wire colors | white/orange-orange, white/green-green |
| Twisted pairs | 2 cores to the pair |
| Overall twist | Two pairs with two fillers to the core |
| Shielding | Aluminum-coated foil, tinned copper braided shield |
| Optical shield covering | 70 % |
| External sheath, color | water blue RAL 5021 |
| Outer sheath thickness | 1.2 mm |
| External cable diameter D | 6.4 mm ±0.2 mm |
| Minimum bending radius, fixed installation | 4 x D |
| Minimum bending radius, flexible installation | 8 x D |
| Tensile strength GRP | ≤ 80 N |
| Cable weight | 42 kg/km |
| Outer sheath, material | PUR |
| Material conductor insulation | Foamed PE |
| Conductor material | Bare Cu litz wires |
| Standards/specifications | Electrical requirements EN 50288-2-2 |
| Insulation resistance | ≥ 500 MΩ*km |
| Loop resistance | ≤ 290.00 Ω/km |
| Cable capacity | approx. 45 nF/km (at 1 kHz) |
| Wave impedance | 100 Ω ±5 Ω (at 100 MHz) |
| Near end crosstalk attenuation (NEXT) | 65.3 dB (with 1 MHz) |
| Near end crosstalk attenuation (NEXT) | 56.3 dB (at 4 МHz) |
| Near end crosstalk attenuation (NEXT) | 50.3 dB (at 10 MHz) |
| Near end crosstalk attenuation (NEXT) | 47.2 dB (at 16 MHz) |
| Near end crosstalk attenuation (NEXT) | 45.8 dB (at 20 МHz) |
| Near end crosstalk attenuation (NEXT) | 42.9 dB (at 31.25 МHz) |
| Near end crosstalk attenuation (NEXT) | 38.4 dB (at 62.5 МHz) |
| Near end crosstalk attenuation (NEXT) | 35.3 dB (at 100 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 62.3 dB (with 1 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 53.3 dB (at 4 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 47.3 dB (at 10 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 44.2 dB (at 16 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 42.8 dB (at 20 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 39.9 dB (at 31.25 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 35.4 dB (at 62.5 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 32.3 dB (at 100 MHz) |
| Attenuation | 3.2 dB (with 1 MHz) |
| Attenuation | 6 dB (at 4 МHz) |
| Attenuation | 9.5 dB (at 10 MHz) |
| Attenuation | 12.1 dB (at 16 MHz) |
| Attenuation | 13.6 dB (at 20 МHz) |
| Attenuation | 17.1 dB (at 31.25 МHz) |
| Attenuation | 24.8 dB (at 62.5 МHz) |
| Attenuation | 32 dB (at 100 MHz) |
| Return loss (RL) | 23 dB (at 4 МHz) |
| Return loss (RL) | 24.1 dB (at 8 МHz) |
| Return loss (RL) | 25 dB (at 10 MHz) |
| Return loss (RL) | 25 dB (at 16 MHz) |
| Return loss (RL) | 25 dB (at 20 МHz) |
| Return loss (RL) | 23.6 dB (at 31.25 МHz) |
| Return loss (RL) | 21.5 dB (at 62.5 МHz) |
| Return loss (RL) | 20.1 dB (at 100 MHz) |
| Signal runtime | 5.3 ns/m |
| Coupling resistance | ≤ 100.00 mΩ/m (at 10 MHz) |
| Nominal voltage, cable | ≤ 100 V (Peak value, not for high-power applications) |
| Test voltage Core/Core | 700 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 700 V (50 Hz, 1 min.) |
| Current carrying capacity of cable | 2 A (according to DIN VDE 0891-1) |
| Flame resistance | according to IEC 60332-1-2 |
| Flame resistance | in acc. to UL VW1 |
| Halogen-free | according to IEC 60754-1 |
| Resistance to Oil | according to EN 60811-2-1 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (Cable, flexible installation) |
| Ambient temperature (installation) | -20 °C ... 80 °C |
| Ambient temperature (storage/transport) | -20 °C ... 80 °C |
| Shielded | yes |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
