1417841
Official DistributorSKU
PHX1417841
MPN
SAC-5P-MINMS/ 2,0-928/MINFR DN
Weight
0.497 kg
Series SAC-5P

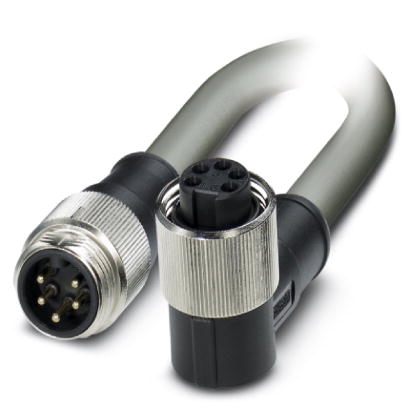

SAC-5P-MINMS/ 2,0-928/MINFR DN - Bus system cable
Bus system cable, DeviceNet™, 5-position, PVC, gray RAL 7001, shielded (Tinned copper braided shield), Plug straight 7/8"-16UNF, coding: A, on Socket angled 7/8"-16UNF, cable length: 2 m, Connector unshielded
SAC-5P
The Phoenix Contact SAC-5P Series comprises 5-position sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These cables are engineered to provide secure and efficient connections between sensors, actuators, and control systems.
Key Features:
Connector Types: The SAC-5P Series offers cables with M12 connectors in both straight and angled configurations, providing flexibility for various installation scenarios.
Cable Materials: Cables are available with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Shielding Options: Some models feature advanced shielding technology to protect against electromagnetic interference, ensuring signal integrity in environments with high electrical noise.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
| Degree of Protection | IP67 |
| Length of Cable | 2 m |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (Plug / socket) |
| Degree of Protection | IP65 |
| Nominal Voltage | 30 V |
| Number of Positions | 5 |
| Contact Material | CuZn |
| Cable Type | DeviceNet trunk cable |
| Conductor Cross Section | 1x 1 mm² (Drain wire) |
| Conductor Cross Section | 2x 1 mm² (Data pair) |
| Conductor Cross Section | 2x 1.7 mm² (Power supply) |
| AWG Signal Line | 18 |
| AWG Power Supply | 15 |
| Cable Nominal voltage | < 600 V (Peak value, not for high-power applications) |
| Resistance to Oil | UL 1581 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
