1410013
Official DistributorSKU
PHX1410013
MPN
MSLK 4
Weight
0.007 kg

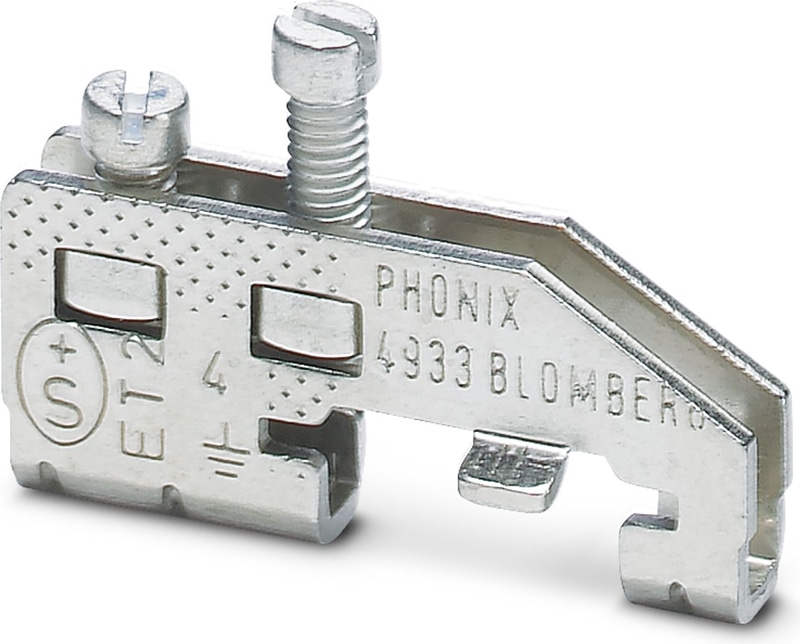

MSLK 4 - Ground terminal
Ground terminal, number of connections: 1, connection method: Screw connection, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 15, color: silver
Technical Specifications
Product properties
| Number of Connections | 1 |
| Number of rows | 1 |
Electrical properties
| Rated surge voltage | 5 kV |
| Maximum power dissipation for nominal condition | 0.77 W |
Connection data
| Grounding foot | Yes |
| Number of connections per level | 1 |
| Nominal cross section | 2.5 mm² |
| Screw thread | M3 |
| Note | Please observe the current carrying capacity of the DIN rails. |
| Tightening torque | 0.5 ... 0.8 Nm |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Cross section AWG | 24 ... 12 (converted acc. to IEC) |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible [AWG] | 24 ... 14 (converted acc. to IEC) |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.2 mm² ... 2.5 mm² |
| Maximum Load Current | 34 A (with 4 mm² conductor cross section) |
Dimensions
| Width | 5 mm |
| Height | 27.5 mm |
| Depth | 18 mm |
Material specifications
| Color | silver |
| Flammability rating according to UL 94 | V0 |
| Insulating material | PA |
Mechanical data
| Open side panel | Yes |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting Type | NS 15 |
Accessories
NS 15 UNPERF 2000MM VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 15 PERF 2000MM VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
NS 15 AL PERF 2000MM VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
NS 15 WH PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, Galvanized, white passivated, Standard profile, color: silver
Why Proax for Phoenix Contact 1410013?
Proax is an authorized distributor of Phoenix Contact 1410013 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
