1409217
Official DistributorSKU
PHX1409217

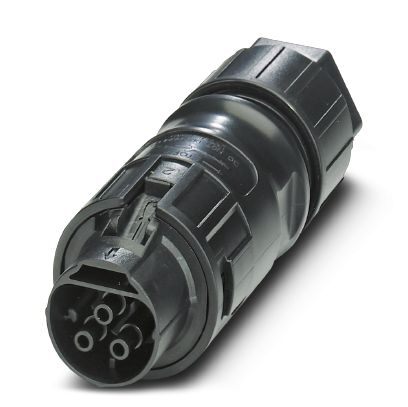

Coupler connector - PRC 3-FC-FS6 12-16
Installation connector, Range of articles: PRC 35, Coupler connector, type: Can only be released with a tool, housing material: PPE, color: black, number of positions: 3, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², rated voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Type of contact: Socket, min. cable diameter: 12 mm, max. cable diameter: 16 mm. Variant for release with a tool
- Up to 75% smaller in size than industrial connectors with the same rating
- Locking mechanism can be unlocked manually or using a tool
- Suitable for applications in atmospheres containing salt and in direct sunlight
- Ideal for indoor and outdoor use due to weatherproof materials
Technical Specifications
Item properties
| Range of articles | PRC 35 |
| Brief article description | Coupler connector |
| Product feature | designed for assembly |
| Note | Order information: Variant for release with a tool |
| Type | Can only be released with a tool |
| Color | black |
| Connection Method | Screw connection |
| Type of contact | Socket |
| Number of Positions | 3 |
| Connection profile | 2+PE |
| Coding | AD (Mating face) |
Product dimensions
| Width | 37.6 mm |
| Height | 37.6 mm |
| Length | 107.5 mm |
| Rated current | 35 A (With 6 mm² conductor cross section in accordance with IEC 61984) |
| Rated current | 32 A (With 6 mm² conductor cross section in accordance with IEC 61535) |
| Rated current | 21.4 A (With 6 mm² conductor cross section and 85 °C in accordance with 2 PfG 1915) |
| Rated current | 32 A (with AWG 10, in accordance with UL 2237) |
| Rated voltage | 690 V AC (in accordance with IEC 61984) |
| Rated voltage | 500 V AC (in accordance with IEC 61535/2 PfG 1915) |
| Rated voltage | 600 V AC (In accordance with UL 2238) |
| Protection class | II |
Connection data
| Min. wire cross section | 1.5 mm² |
| Max. wire cross section | 6 mm² |
| Cable Diameter | 12 mm ... 16 mm |
| Stripping length of the sheath | 50 mm |
| Stripping length of the individual wire | 12 mm (Lay PE conductor 8 mm leading) |
| Torque | max. 1 Nm (Contact screw) |
Environmental data
| Ambient Temperature (Operation) | -40 °C ... 105 °C (dependent on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 85 °C |
Mechanical tests
| Insertion force | 30 N ±10 N |
| Category of shock impact | IK08 (-25°C) |
Service life tests
| Degree of Protection | IP66 / IP68 (2m / 24h) / IP69K (IP69K measured at Phoenix Contact approval laboratory) |
| Insertion/withdrawal cycles | 100 |
| Halogen-free | yes |
| RTI | 105 °C |
| Contact surface material | silver-plated |
| Contact Material | Cu |
Safety notes
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Safety note | • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Safety note | • Assembled products may not be manipulated or improperly opened. |
| Safety note | • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). |
| Safety note | • When using the product in direct connection with third-party manufacturers, the user is responsible. |
| Safety note | • For operating voltages > 50 V AC, conductive connector housings must be grounded |
| Safety note | • Ensure that the protective or functional ground has been properly connected. |
| Safety note | • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector |
| Safety note | • Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product |
| Safety note | • Only use tools recommended by Phoenix Contact |
| Safety note | • The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. |
| Safety note | • Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products |
| Safety note | • Operate the connector only when it is fully plugged in. |
| Safety note | • Operate the connector only when it is fully plugged in and interlocked. |
| Safety note | • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. |
| Safety note | • Observe the minimum bending radius of the cable. Lay the cable without twisting it. |
| Safety note | • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
PRC 3-FC-MS6 8-21 - Connector, Range of articles: PRC 35, design: Release with tool or by hand (see accessories), housing material: PPE, color: black, number of positions: 3, min. conductor cross section: 1.5 mm2, max. conductor cross section: 6 mm2, rated voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Contact connection type: Pin, min. cable diameter: 8 mm, max. cable diameter: 21 mm, Ensures touch protection
