1407710
Official DistributorSKU
PHX1407710
MPN
HC-EVO-B06PT-BWSC-HL-M20-PLRBK
Weight
0.316 kg
Series HC-EVO-B

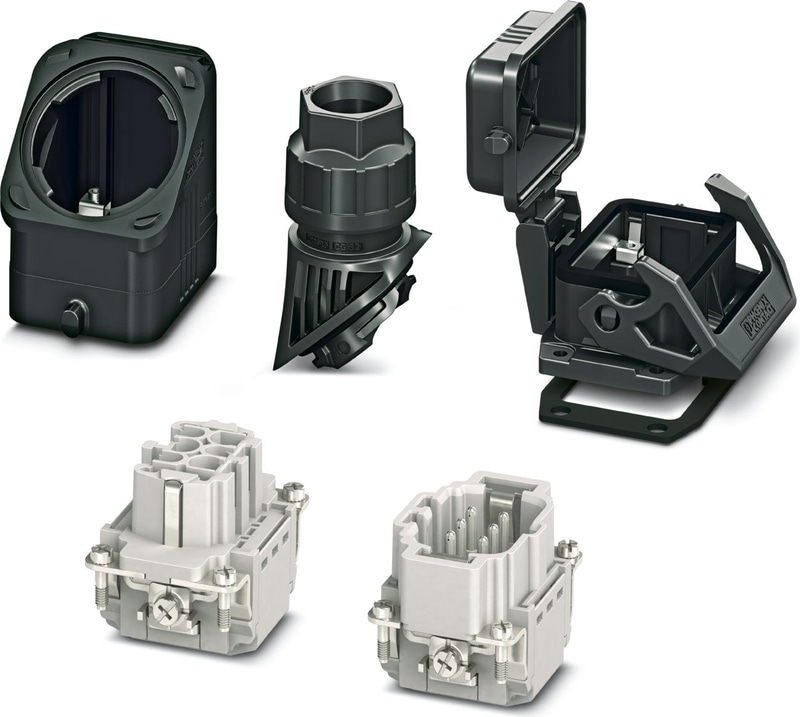

HC-EVO-B06PT-BWSC-HL-M20-PLRBK - Connector set
EVO connector set, B6 series, plastic housing, consisting of: 1407727, 1407728, 1407622, 1407619, 1407669, plastic housing
- Lower costs than metal version
- Labeling option using 9 x 20 mm marking label
- Low weight
- Lower risk of condensation
Documents
Technical Specifications
Notes
| General | Connectors may be operated only when there is no load/voltage. |
Product properties
| Housing type | Complete housing |
| Series | HC-B |
| Type | B6 |
| Number of Positions | 6 |
| Connection profile | 6+PE |
| Contact numbering | 1 - 6 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M20 |
| Protective cover | yes |
| Cable outlet | straight |
| Pg screw connection | none |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated voltage (III/3) | 500 V |
| Rated surge voltage | 6 kV |
| Rated current | 16 A |
Connection data
| Connection Method | Push-in connection |
| Connection technology | Push-in connection |
| Conductor cross-section | 0.14 mm² ... 2.5 mm² (with ferrule) |
| Conductor cross-section | 0.14 mm² ... 2.5 mm² (with ferrule) |
| Connection cross section AWG | 26 ... 14 (with ferrule) |
| Tightening torque | 0.5 Nm ... 1.7 Nm (Fixing screws for panel mounting base) |
Dimensions
| Width | 53 mm |
| Height | 103 mm |
| Length | 80.5 mm |
| Drill hole distance, horizontal | 70 mm |
| Drill hole distance, vertical | 32 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 52 mm |
Mechanical characteristics
| Contact diameter | 2.5 mm |
Material specifications
| Material Protective cover | PA |
| Flammability rating according to UL 94 | V0 |
| Seal material Profile gasket | NBR |
| Seal material Flat gasket | NBR |
| Housing Material | PA |
| Contact Material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PC |
| Locking latch material | PA |
Cable/line
| External Cable Diameter | 7 mm ... 13 mm |
Mechanical data
| Type of the screw connection | 1x M20 |
| Locking Type | Latch |
| Insertion/withdrawal cycles | ≥ 500 |
Ambient conditions
| Degree of Protection | IP66 |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK09 |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
Mounting
| Assembly note | Connectors may only be operated when there is no load/the power is switched off. Can be used for solid wires and stranded wires with ferrule. |
Accessories
Why Proax for Phoenix Contact 1407710?
Proax is an authorized distributor of Phoenix Contact 1407710 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
