1406098
Official DistributorSKU
PHX1406098
MPN
MBK-FS/FS BU
Weight
0.002 kg

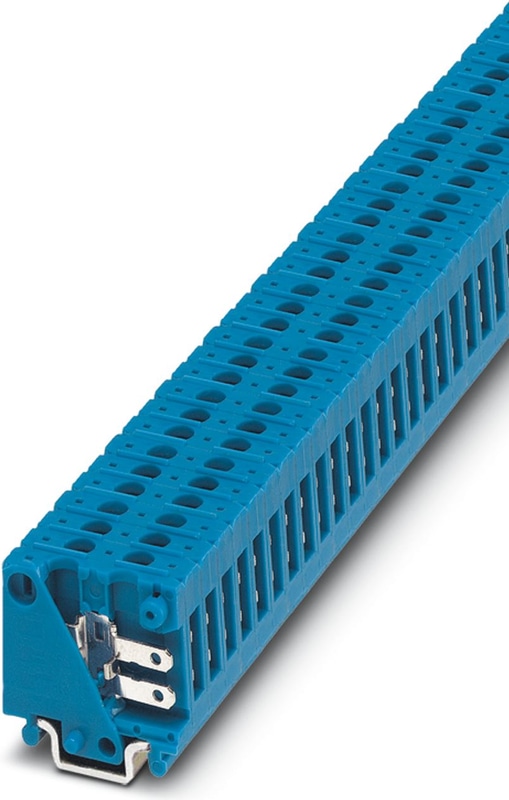

MBK-FS/FS BU - Feed-through terminal block
Feed-through terminal block, nom. voltage: 400 V, nominal current: 16 A, 1 level, connection method: Spade connection, cross section: 0.5 mm2 - 1 mm2, mounting: NS 15, color: blue
Technical Specifications
Product properties
| Number of Connections | 8 |
| Number of rows | 1 |
| Potentials | 1 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage | 6 kV |
Connection data
| Number of connections per level | 2 |
1 level
| Spade connection | 6.3/2.8 x 0.8 mm |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 0.5 mm² ... 1 mm² |
| Cross section AWG | 20 ... 18 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 1 mm² |
| Conductor cross section, flexible [AWG] | 20 ... 18 (converted acc. to IEC) |
| Nominal Current | 16 A (current data for slip-on connections in acc. with DIN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
| Maximum Load Current | 16 A (current data for slip-on connections in acc. with DIN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
| Nominal Voltage | 400 V (voltage data for slip-on connections in acc. with DIN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
Dimensions
| Width | 5.2 mm |
Material specifications
| Color | blue |
| Flammability rating according to UL 94 | V2 |
| Insulating material group | I |
| Insulating material | PA |
Mechanical data
| Open side panel | No |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
Mounting
| Mounting Type | NS 15 |
