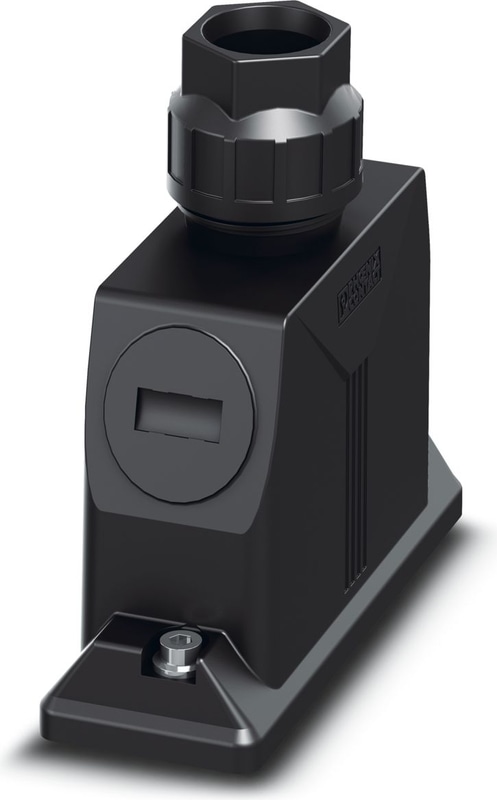

HC-ADV-B24-HHWH-1TGM32-PL - Housing
Sleeve housing B24, with screw locking, material: PA, cable outlets: 1, straight, M32, height: 95 mm, cable gland: with, Standard
- Integrated screw connection
- Lower costs than metal version
- Low weight
- Lower risk of condensation
Technical Specifications
Notes
| General | For contact inserts HC-B24, BB46, D64, DD108, M, K, HV10-I-PT, HV 10-E...C |
Product properties
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B24 |
| No. of cable outlets | 1 |
| Type of the screw connection | M32 |
| Fixing screws | M6 (screw head: 5 mm Allen screw) |
| Shielded | no |
| Cable outlet | straight |
| Pg screw connection | with |
Connection data
| External Cable Diameter | 11 mm ... 21 mm |
| Tightening torque | 3 Nm ... 5 Nm (for M6 mounting screws on the sleeve housing) |
| Tightening torque, union nut | 7.50 Nm |
Dimensions
| Width | 57 mm |
| Height | 95 mm |
| Length | 152 mm |
| Wrench size, union nut | 30 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 112 mm |
Material specifications
| Material Pressure screw | PA |
| Flammability rating according to UL 94 | V0 (Housing) |
| Seal material Profile gasket | NBR |
| Seal material cable seal | NBR |
| Housing Material | PA |
| Locking latch material | Stainless steel |
| Material of locking screw | Stainless steel |
| Impact strength | IK08 |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
Mechanical data
| Type of the screw connection | M32 |
| Locking Type | Screw |
Cable/line
| External cable diameter Cable 1 | 11 mm ... 21 mm |
Mounting
| Assembly instructions | M6 locking screw, with 5 mm Allen screw head |
| Fixing screws | M6 (screw head: 5 mm Allen screw) |
Accessories
HC-B-AF-SET - Panel-mount flange for HEAVYCON ADVANCE housing, set consisting of: 2 panel-mount flanges with 4 self-tapping screws (M4, Torx®) and 4 fan-type washers
G-INS-M32-M68N-PNES-GY - Cable gland, material for screw connection: PA, application: Standard, external cable diameter 15 mm ... 21 mm, shielding: no, connecting thread: M32 x 1.5, color: silver-grey RAL 7001
G-INS-M32-M68N-PNES-BK - Cable gland, material for screw connection: PA, application: Standard, external cable diameter 15 mm ... 21 mm, shielding: no, connecting thread: M32 x 1.5, color: jet black RAL 9005
G-INS-M32-M68N-NNES-S - Cable gland, material for screw connection: Brass, nickel-plated, application: Standard, external cable diameter 15 mm ... 21 mm, shielding: no, connecting thread: M32 x 1.5, color: silver, with O-ring
HC-M-KV-M32(19-27) - Metal screw connection up to 5 bar, thread length: 8 mm, cable diameter: 19 - 27 mm, WAF 43, screw connection: M32
G-INSEC-M32-M68N-NCRS-S - Cable gland, material for screw connection: Brass, nickel-plated, application: EMC, external cable diameter 14 mm ... 21 mm, shielding: yes, connecting thread: M32 x 1.5, color: silver, with O-ring
HC-M-KV-Z-M32 - Metal screw connection with strain relief clamp, thread length: 8 mm, cable sealing area: 18 - 27 mm, clamping area: 19 - 30 mm, SW 40, screw connection: M32
HC-M-KV-T-M32 - Metal screw connection with cable bend protection and strain relief, thread length: 8 mm, cable sealing area: 18 - 27 mm, clamping area: 20 - 30 mm, SW 40, screw connection: M32
ENLAR-M-KV-M32/M40 - Extension adapter, connecting thread: M32 x 1.5, color: silver, with O-ring
HC-M-BS-M32 - Screw plug, material for screw connection: Brass, nickel-plated, connecting thread: M32 x 1.5, color: silver
