Official DistributorSKU
MPN
1400907
Weight
0.2 kg
This product is Not Cancellable/Not Returnable
Series SAC-5P

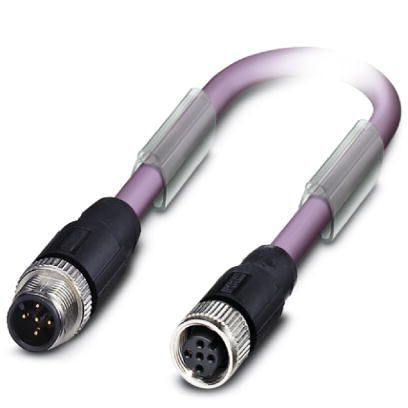

1400907 - Bus system cable, CANopen®, DeviceNet™, 5-position, PUR halogen-free, red lilac RAL 4001, shielded (Tinned copper braided shield), Plug straight M12, coding: A, on Socket straight M12, coding: A, cable length: 3 m, Shield not connected to knurl
Technical Specifications
| Degree of Protection | IP67 |
| Length of Cable | 3 m |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Degree of Protection | IP65 |
| Nominal Voltage | 60 V |
| Number of Positions | 5 |
| Contact Material | CuSn |
| Cable Type | CAN Bus/DeviceNet |
| Conductor Cross Section | 1x 0.34 mm² (Drain wire) |
| Conductor Cross Section | 2x 0.25 mm² (signal line) |
| Conductor Cross Section | 2x 0.34 mm² (Power supply) |
| AWG Signal Line | 24 |
| AWG Power Supply | 22 |
| Bending Radius | 70 mm |
| Cable Nominal voltage | max. 300 V |
| Ambient Temperature (Operation) | -20 °C ... 70 °C (cable, flexible installation) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
Why Proax for Phoenix Contact SAC-5P-M12MS/3,0-920/M12FSSHNC?
Proax is an authorized distributor of Phoenix Contact SAC-5P-M12MS/3,0-920/M12FSSHNC and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | SAC5PM12MS30920M12FSSHNC |
| Pack Size | 1 |
