Name: 1206230
Brand: Phoenix Contact
SKU: PHX1206230
Price: 4419.3800 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

PPS STANDARD I/M

Weight

18.5 kg

This product is Not Cancellable/Not Returnable

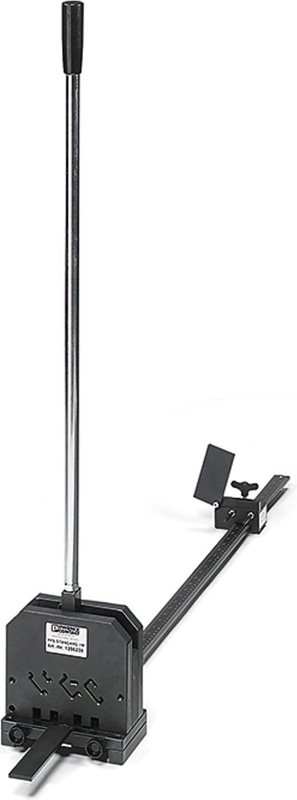

PPS STANDARD I/M - Cutting tool

Profile cutter, for cutting and stamping holes in standard DIN rails, NS 32/NS 35/7,5/NS 35/15 and for cutting the NS 15 and NLS‑CU 3/10 neutral busbar to length, can accommodate 2 stamping bits, with metric measuring rail, delivered without stamping bits but with inch/metric measuring rail

Product properties

Type	Inch/Millimeter

Dimensions

Width	180 mm
Height	220 mm
Length	100 mm
Length of the measuring bar	1000 mm
Length of the hand lever	860 mm
Max. material thickness	1.5 mm

Material specifications

Color	black
Material	Steel

1203563
PPS-ST (3,5X12)L - Stamping bit, for elongated holes: 3.5 x 12 mm
1203534
PPS-ST (4,5X12)L - Stamping bit, for elongated holes: 4.5 x 12 mm
1202603
PPS-ST (5,5X12)L - Stamping bit, for elongated holes: 5.5 x 12 mm
1204876
PPS-ST (6,35X15)L - Multi-function tool (pressing/cutting/punching holes)
1202593
PPS-ST (6,5X15)L - Stamping bit, for elongated holes: 6.5 x 15 mm
1203550
PPS-ST (3,5X12)Q - Stamping bit, for elongated hole: 3.5 x 12 mm
1203547
PPS-ST (4,5X12)Q - Stamping bit, for elongated hole: 4.5 x 12 mm
1203411
PPS-ST (5,5X12)Q - Stamping bit, for elongated hole: 5.5 x 12 mm
1203408
PPS-ST (6,5X15)Q - Stamping bit, for elongated hole: 6.5 x 15 mm
1204892
PPS-ST (3,8) - Stamping bit, for bore holes: 3.8 mm diameter
1202616
PPS-ST (4,3) - Stamping bit, for bore holes: 4.3 mm diameter
1202629
PPS-ST (5,3) - Stamping bit, for bore holes: 5.3 mm diameter
1202632
PPS-ST (6,4) - Stamping bit, for bore holes: 6.4 mm diameter
1204889
PPS-ST (7,0) - Stamping bit, for bore holes: 7.0 mm diameter
1202726
PPS-ST (8,4) - Stamping bit, for bore holes: 8.4 mm diam
1206285
Workbench - PPS TABLE
1208924
Accessories for tools - PPS HYDRAULIC CYL
