1201594
Official DistributorSKU
PHX1201594
MPN
BG/SHA
Weight
0.049 kg
This product is Not Cancellable/Not Returnable

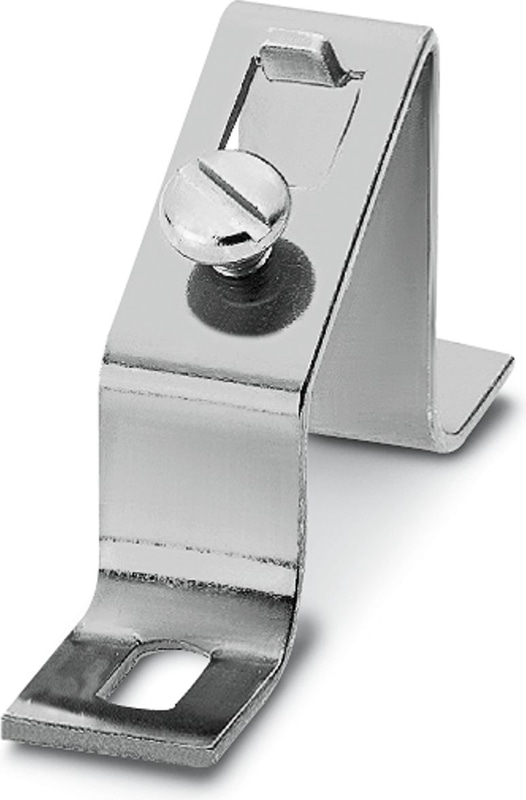

BG/SHA - Angled brackets
Angled brackets with M6 screw, DIN rail limit stop, for fixing DIN rails at an angle of 30°, height: 46 mm
- The BG/S brackets can be used to fix DIN rails at a distance from the mounting surface
- 30° tilt angle
Technical Specifications
Dimensions
| Width | 20 mm |
| Height | 84 mm |
| Depth | 46 mm |
| Length | 84 mm |
Material specifications
| Color | silver |
| Material | Steel |
| Coating | galvanized, passivated with a thick layer |
Why Proax for Phoenix Contact 1201594?
Proax is an authorized distributor of Phoenix Contact 1201594 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
