1004076
Official DistributorSKU
PHX1004076
MPN
UBE/D + ES/KMK 3
Weight
0.01 kg

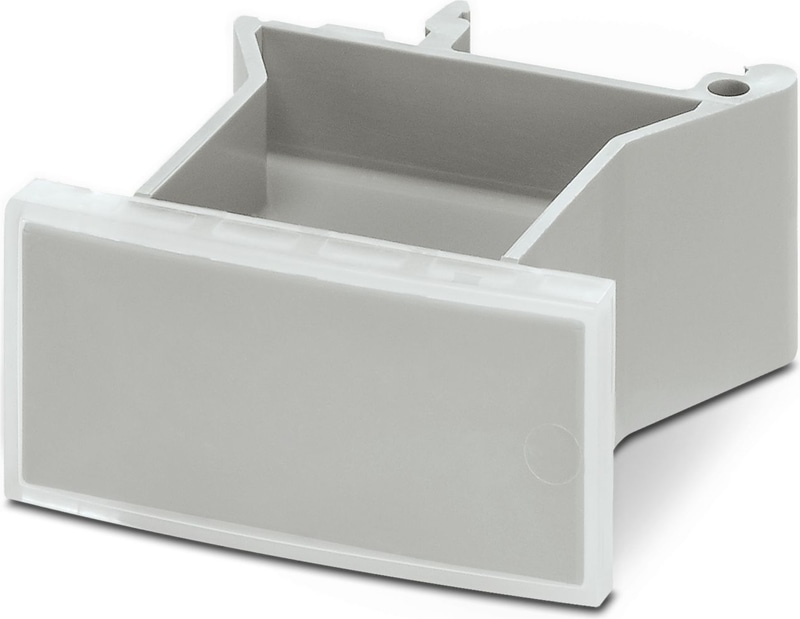

UBE/D + ES/KMK 3 - Marker carriers
Technical Specifications
Dimensions
| Width | 20 mm |
| Height | 51.5 mm |
| Height NS 35/7,5 | 51.5 mm |
| Length | 42.5 mm |
Material specifications
| Color | gray |
| Flammability rating according to UL 94 | V2 |
| Base element material | PA |
| Components | free from silicone and halogen |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
Mounting
| Mounting Type | snapped |
Why Proax for Phoenix Contact 1004076?
Proax is an authorized distributor of Phoenix Contact 1004076 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
Recommended
UBE/D (60X10) - Terminal strip marker carrier for identifying terminal groups, for installation on the NS 32 or NS 35/7.5 terminal strips, marking field size: 60 x 10 mm
