Official DistributorSKU
MPN
BMKLT 41,5X12 WH
Weight
0.021 kg
Series BMKLT

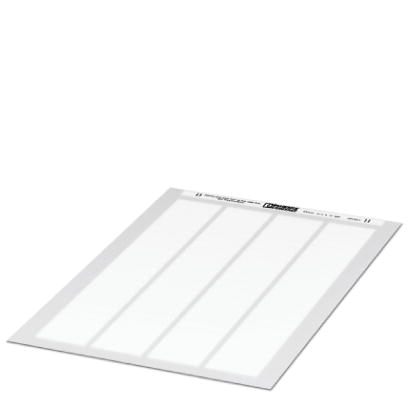

Label sheet, DIN A4 BMKLT 41,5X12 WH
Label sheet, DIN A4, Sheet, white, unlabeled, can be labeled with: Office printing systems, mounting type: adhesive, lettering field size: 41.5 x 12 mm
- The material file can be downloaded under the CLIP PROJECT software under Downloads - “Software update - Marking”.
Technical Specifications
Dimensions
| Length (b) | 12 mm |
| Width (a) | 41.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
General
| Note | Print image may vary depending on laser printer |
| Color | white |
| Base element material | Polyester |
| Components | Silicone-free |
| Material | Polyester |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 88 |
| Number of individual labels per row | 4 |
| Marking mounting type | adhesive |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Accessories
5144819 - Plastic magazine for CMS-P1 plotter and PLOTMARK, for holding sheet material, self-adhesive mat for fixing labels, films, and paper, sheet size max. DIN A4.
