Name: 0404046
Brand: Phoenix Contact
SKU: PHX0404046
Price: 3.6400 CAD
Availability: BackOrder

Number of Connections

Number of rows

Maximum power dissipation for nominal condition

Nominal current I<sub>N</sub>

Current carrying capacity of the neutral busbar

Nominal cross section

Screw thread

Tightening torque

Stripping length

Connection in acc. with standard

Conductor cross section rigid

Cross section AWG

Conductor cross section flexible

Conductor cross section, flexible [AWG]

2 conductors with same cross section, solid

2 conductors with same cross section, flexible

Maximum Load Current

Width

Height

Depth

Length

Color

Flammability rating according to UL 94

Mounting Type

Request replacement

We'll send you an email with the lead time.
Note: We only deliver to Canada and US.

Request for lead time

{ manufacturer } Availability

Order { manufacturer } { mpn } { name } online at Proax. Authorized distributor offering fast shipping and local pickup across Canada.

Buy { manufacturer } { mpn } { name }

We are committed to protecting your privacy and security. We use Stripe, a PCI level 1 certified payment processor and do not sell or share any of your financial information.

 Our highly skilled in-house technical team is ready to assist with any technical needs.

<h3>UAB 1 - Support bracket</h3><p>Support bracket, number of positions: 1, mounting type: DIN rail mounting, color: gray</p>

3032431

<h3>ABN 2/SS - Support bracket</h3><p>Double support bracket, insulating material, optionally for use with 3 x 10 mm or 6 x 6 mm busbar, height in closed state: 39 mm</p>

0404460

<h3>AB2/SS - Support bracket</h3><p>Double support bracket, insulating material, optionally for use with 3 mm x 10 mm or 6 mm x 6 mm busbar, height: 48 mm</p>

0404431

<h3>AB/SS - Support bracket</h3><p>Support bracket made from insulation material, with retaining screw, can be used with either 3 x 10 mm or 6 x 6 mm busbar, color: gray</p>

0404428

<h3>SZS 1,0X4,0 VDE - Screwdriver</h3><p>Screwdriver, slot-headed, VDE insulated, size: 1.0 x 4.0 x 100 mm, 2-component grip, with non-slip grip</p><ul><li>For working on or in the vicinity of live parts up to 1000 V AC or 1500 V DC</li><li>The tools feature ergonomic two-component safety handles</li><li>Large contact surface of blades inside screw head</li><li>Individually tested safety screwdrivers according to DIN EN 60900 (VDE 0682-201)</li></ul>

1205066

<h3>SZS 1,0X6,5 VDE - Screwdriver</h3><p>Screwdriver, slot-headed, VDE insulated, size: 1.0 x 6.5 x 150 mm, 2-component grip, with non-slip grip</p><ul><li>For working on or in the vicinity of live parts up to 1000 V AC or 1500 V DC</li><li>The tools feature ergonomic two-component safety handles</li><li>Large contact surface of blades inside screw head</li><li>Individually tested safety screwdrivers according to DIN EN 60900 (VDE 0682-201)</li></ul>

1205079

<h3>NLS-CU 3/10 SN 1000MM - Neutral busbar</h3><p>Neutral busbar, DIN VDE 0611-4: 1991-02, material: Copper, tin-plated, color: silver</p>

0402174

<h3>ZB 6:UNBEDRUCKT - Zack marker strip</h3><p></p><ul><li>Labeling service: Phoenix Contact can custom-label all zack marker strip markers according to your requirements</li><li>The ZB zack marker strip system is a marking solution for modular terminal blocks and electronics modules with tall marker grooves</li></ul>

1051003

<h3>Zack marker strip - ZB 6 CUS</h3><p>Zack marker strip, can be ordered: Strip, white, labeled according to customer specifications, mounting type: snap into tall marker groove, for terminal block width: 6.2 mm, lettering field size: 6.15 x 10.5 mm, Number of individual labels: 10</p><ul><li>Labeling service: Phoenix Contact can custom-label all zack marker strip markers according to your requirements</li><li>The ZB zack marker strip system is a marking solution for modular terminal blocks and electronics modules with tall marker grooves</li></ul>

0824992

<h3>ZB 6,LGS:FORTL.ZAHLEN - Zack marker strip</h3><p></p><ul><li>Labeling service: Phoenix Contact can custom-label all zack marker strip markers according to your requirements</li><li>The ZB zack marker strip system is a marking solution for modular terminal blocks and electronics modules with tall marker grooves</li></ul>

1051016

<h3>ZB 6,LGS:GLEICHE ZAHLEN - Zack marker strip</h3><p></p><ul><li>Labeling service: Phoenix Contact can custom-label all zack marker strip markers according to your requirements</li><li>The ZB zack marker strip system is a marking solution for modular terminal blocks and electronics modules with tall marker grooves</li></ul>

1051032

Zack marker strip - ZB 6,LGS:GLEICHE ZAHLEN

<h3>ZB 6,LGS:L1-N,PE - Marker for terminal blocks</h3><p></p><ul><li>Labeling service: Phoenix Contact can custom-label all zack marker strip markers according to your requirements</li><li>The ZB zack marker strip system is a marking solution for modular terminal blocks and electronics modules with tall marker grooves</li></ul>

1051414

<h3>ZB 6,LGS:U-N - Marker for terminal blocks</h3><p></p><ul><li>Labeling service: Phoenix Contact can custom-label all zack marker strip markers according to your requirements</li><li>The ZB zack marker strip system is a marking solution for modular terminal blocks and electronics modules with tall marker grooves</li></ul>

1051430

Marker for terminal blocks - ZB 6,LGS:U-N

<h3>UC-TM 6 - Marker for terminal blocks</h3><p></p><ul><li>The markers, which are supplied in uniform sheets, can be printed onto quickly and easily using the BLUEMARK printing systems</li><li>The UC-TM ... UniCard labeling range includes terminal markers for Phoenix Contact products with tall marker grooves</li><li>The multi-section marking strips are easy to fit and can be easily separated if required</li><li>The markers support multi-line labeling</li><li>The sheets provide space for including function texts</li><li>Marking service: Phoenix Contact can custom-mark all UniCard markers according to your specifications</li></ul>

0818085

<h3>Marker for terminal blocks - UC-TM 6 CUS</h3><p>Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, mounting type: snap into tall marker groove, for terminal block width: 6.2 mm, lettering field size: 5.6 x 10.5 mm, Number of individual labels: 80</p><ul><li>The UC-TM ... UniCard labeling range includes markers for products with tall marker grooves</li><li>Labeling service: Phoenix Contact can custom-label all UniCard markers according to your requirements</li><li>The multi-section marking strips are easy to fit and can be easily separated if required</li><li>The sheets provide space for including function texts</li><li>The markers support multi-line labeling</li><li>The format automatically ensures printing with a high degree of positioning accuracy</li></ul>

0824589

<h3>UCT-TM 6 - Marker for terminal blocks</h3><p></p><ul><li>The UCT-TM... UniCard labeling range includes markers for Phoenix Contact products with tall marker grooves, e.g. terminals</li><li>The markers, which are supplied in uniform sheets, can be marked quickly, easily, and precisely using the card printers</li><li>The sheets provide additional space for project information and function text that can be helpful during further assembly</li><li>The multi-section marking strips are easy to fit and can be easily separated if required</li><li>Marking service: Phoenix Contact can custom-mark all UniCard markers according to your specifications</li></ul>

0828736

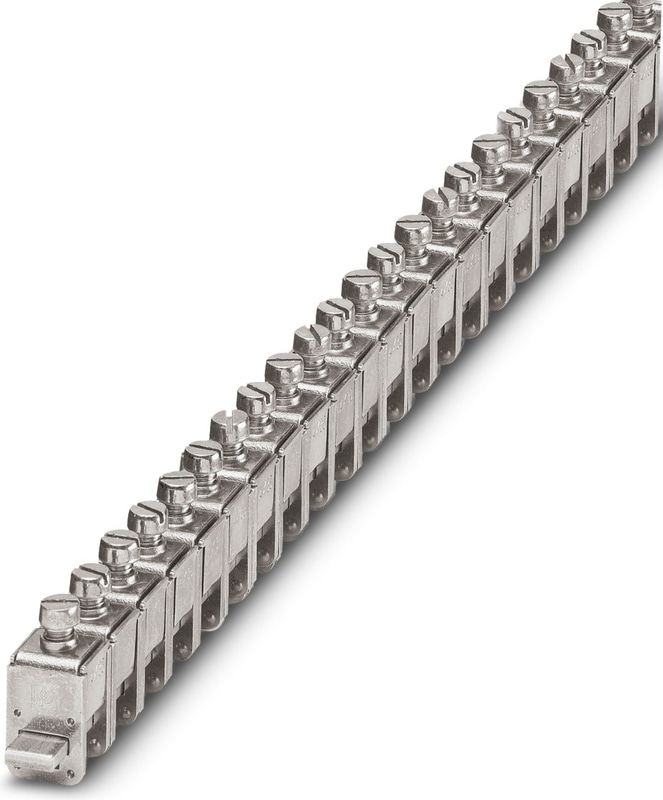

<h3>AK 35 - Connection terminal block</h3><p>Connection terminal block, connection method: Screw connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting: Neutral busbar, color: silver</p>

0404046

AK 35 - Connection terminal block, connection method: Screw connection, Rated cross section: 35 mm2, cross section: 2.5 mm2 - 35 mm2, mounting: Neutral busbar, color: silver

Maximum power dissipation for nominal condition	4.06 W
Nominal current I_N	125 A
Current carrying capacity of the neutral busbar	140 A

0404046

AK 35 - Connection terminal block

Product properties

Electrical properties

Connection data

Level 1 above 1 below 1

Dimensions

Material specifications

Standards and Regulations

Mounting

Why Proax for Phoenix Contact 0404046?

Screw thread	M6
Tightening torque	3.2 ... 3.7 Nm
Stripping length	16 mm
Connection in acc. with standard	IEC / EN
Conductor cross section rigid	2.5 mm² ... 35 mm²
Cross section AWG	12 ... 2 (converted acc. to IEC)
Conductor cross section flexible	2.5 mm² ... 35 mm²
Conductor cross section, flexible [AWG]	12 ... 2 (converted acc. to IEC)
2 conductors with same cross section, solid	1.5 mm² ... 16 mm²
2 conductors with same cross section, flexible	1.5 mm² ... 16 mm²
Maximum Load Current	125 A (with 35 mm² conductor cross section)
Nominal cross section	35 mm²
