Official DistributorSKU
MPN
EK 116
Weight
0.029 kg
This product is Not Cancellable/Not Returnable
Series EK

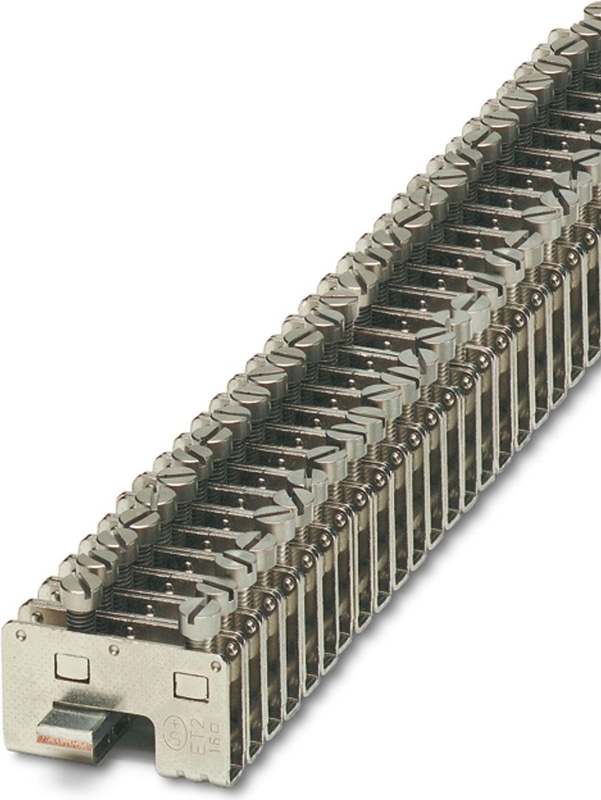

EK 116 - Power terminal block
Power terminal block, connection method: Screw connection, Rated cross section: 10 mm2, cross section: 0.5 mm2 - 16 mm2, mounting: Neutral busbar, color: aluminum color
Technical Specifications
Product properties
| Number of Connections | 1 |
| Number of rows | 1 |
Electrical properties
| Maximum Load Current | 76 A (with 16 mm² conductor cross section) |
| Nominal current IN | 57 A |
| Current carrying capacity of the neutral busbar | 140 A |
Connection data
| Nominal cross section | 10 mm² |
| Maximum Load Current | 76 A (with 16 mm² conductor cross section) |
Level 1 above 1 below 1
| Screw thread | M5 |
| Tightening torque | 1.7 ... 2 Nm |
| Stripping length | 14 mm |
| Conductor cross section rigid | 0.5 mm² ... 16 mm² |
| Cross section AWG | 20 ... 6 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 10 mm² |
| Conductor cross section, flexible [AWG] | 20 ... 8 (converted acc. to IEC) |
| 2 conductors with same cross section, solid | 0.5 mm² ... 10 mm² |
| 2 conductors with same cross section, flexible | 0.5 mm² ... 10 mm² |
| Nominal cross section | 10 mm² |
Rated data (ATEX/IECEx)
| Torque range for mounting screw | 1.7 Nm ... 2 Nm |
Dimensions
| Width | 8 mm |
| Height | 36 mm |
| Length | 40 mm |
Material specifications
| Color | aluminum color |
Mounting
| Mounting Type | Neutral busbar |
Accessories
Why Proax for Phoenix Contact 0401010?
Proax is an authorized distributor of Phoenix Contact 0401010 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
