0203221
Official DistributorSKU
PHX0203221
MPN
ATS-SSK 116/RKN
Weight
0.002 kg
Series ATS-SSK

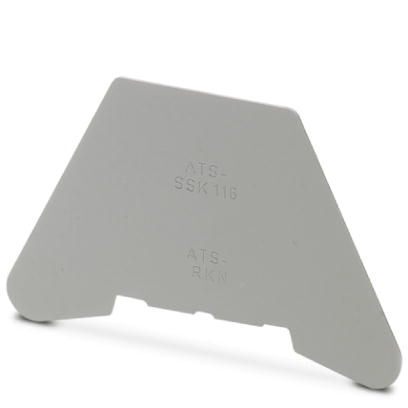

ATS-SSK 116/RKN - Partition plate
Partition plate, width: 0.8 mm, color: gray
Technical Specifications
General
| Color | gray |
| Flammability rating according to UL 94 | V0 |
Dimensions
| Width | 0.8 mm |
Ambient conditions
| Operating Temperature | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Why Proax for Phoenix Contact 0203221?
Proax is an authorized distributor of Phoenix Contact 0203221 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
