Name: MCL652222
Brand: Oriental Motor
SKU: ORIMCL652222
Price: 404.5900 CAD
Availability: BackOrder

Flexible Coupling

All Motor & Drives Motors Accessories Flexible Couplings

Official Distributor

By Oriental Motor

SKU

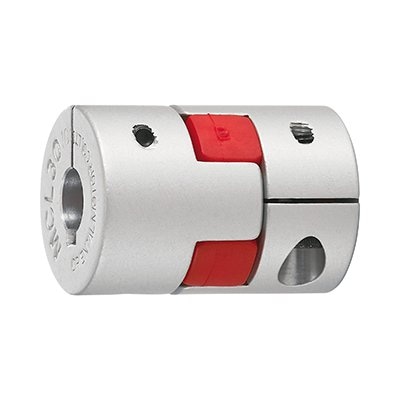

Flexible Coupling (22 mm to 22 mm)

Please contact your local sales office for proper sizing or more information.

Documents

MCL Coupling Operating Manual

Technical Specifications

Outer Diameter	2.56 in
Length	3.44 in
Normal Torque	1410 lb-in
Shaft Hole Diameter d1	0.87 in

Shaft Hole Diameter d2	0.87 in
Inertia	20 oz-in2
Permissible End Play	0.06 in
RoHS Compliant	Yes
