Official DistributorSKU
Weight
6.38 kg

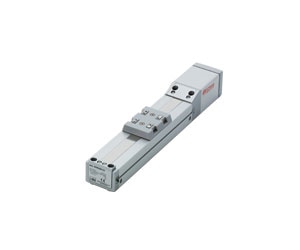

Motorized Linear Slide
This product has been discontinued please contact your local sales office for more information.Documents
Technical Specifications
Specifications
| Drive Method | Ball Screw |
| Actuator Frame Size | 2.13 in. (W) x 1.97 in. (H) |
| Electromagnetic Brake | Equipped |
| Lead | 0.2362 in. |
| Stroke | 19.69 in. |
| RoHS Compliant | Yes |
Specifications
| Safety Standards | CE |
| Insulation Resistance (Actuator) | 100 MΩ or more when 500 VDC megger is applied between the following:Motor case - Motor/Sensor windingsMotor case - Windings of electromagnetic brake |
| Dielectric Strength (Actuator) | Sufficient to withstand the following for 1 minute:Motor case - Motor/Sensor windings 0.5 kVAC 50 HzMotor case - Windings for electromagnetic brake 0.5 kVAC 50Hz |
| Ambient temperature range | 32ºF ~ 104ºF (0ºC ~ 40ºC) (nonfreezing) |
| Ambient Humidity | 85% or less (noncondensing) |
| CE Marking | EMC Directives |
Why Proax for Oriental Motor EZSM3E050MK?
Proax is the authorized distributor of Oriental Motor EZSM3E050MK. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
