AC Motor
Official DistributorSKU

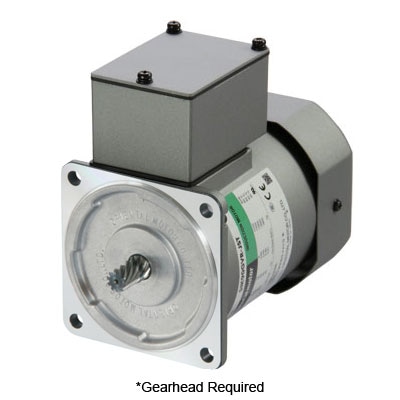

Induction Motor
This product has been discontinued, please contact your local sales office for more information.Documents
Technical Specifications
| Motor Type | Induction |
| Frame Size | 3.54 in |
| Output Power | 90 W (1/8 HP) |
| Voltage (VAC) | Single-Phase 220/230 VAC |
| Frequency (Hz) | 60 |
| Current | 0.71 A |
| Shaft/Gear Type | Pinion Shaft (Gearhead required - sold separately) |
| Type | Terminal Box |
| RoHS Compliant | Yes |
| Safety Standards | UL |
| CE Marking | Low Voltage Directives |
| Electromagnetic Brake | Not Equipped |
| Insulation resistance | 100 MΩ or more when 500 VDC megger is applied between the windings and the case after rated operation under normal ambient temperature and humidity. |
| Dielectric strength | Sufficient to withstand 1.5 kV at 50 Hz or 60 Hz applied between the windings and the case for 1 minute after rated operation under normal ambient temperature and humidity. |
| Temperature Rise | Temperature rise of windings are 144ºF (80ºC) or less measured by the resistance change method after rated operation under normal ambient temperature and humidity. |
| Insulation Class | 130 (B) |
| Overheat Protection | Built-in thermal protector (automatic return type). Open: 266 ± 9ºF (130 ± 5ºC) Close: 185 ± 36ºF (85 ± 20ºC) |
| Ambient temperature range | 14°F ~ 104°F (-10°C ~ 40°C) (nonfreezing) |
| Ambient Humidity | 85% or less (noncondensing) |
| Degree of Protection | IP54 (exclusing the installation surface) |
Why Proax for Oriental Motor 5IK90GVR-UCT?
Proax is the authorized distributor of Oriental Motor 5IK90GVR-UCT. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | 5IK90GVRUCT |
| Pack Size | 1 |
