PLC-TR-1T-MUL-300M-PT
Weight
1 kg
Series PLC-TR

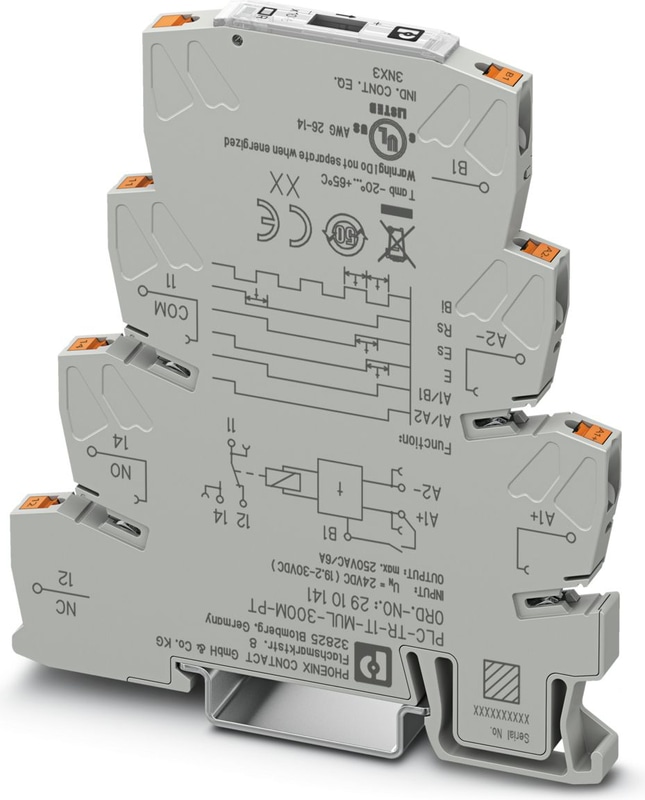

PLC-TR-1T-MUL-300M-PT - Timer relay
Multi-function timer relay with 4 functions in an ultra-narrow design, adjustable time range (0.1 s - 300 min), 1 changeover contact, Push-in connection
Technical Specifications
Product properties
| Operating mode | 100% operating factor |
| Mechanical service life | 2 x 10⁷ cycles |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Service life electrical | 2x 105 cycles |
| Nominal Power Consumption | 0.45 W (at 24 V DC) |
| Rated Insulation Voltage | 300 V AC |
| Rated surge voltage | 6 kV |
Input data
| Nominal Power Consumption | 0.45 W (at 24 V DC) |
| Input voltage range | 24 V DC (19.2 V DC ... 30 V DC) |
| Recovery time | 50 ms |
| Setting range time | 0.1 s ... 300 min. (4 time end ranges) |
| Setting accuracy | ≤ 2.5 % (of scale end value) |
| Repeat accuracy | ≤ 0.5 % (of scale end value) |
Control
| Connection name | Non-floating, terminals A1-B1 |
| Control pulse length | ≥ 50 ms |
Switching
| Contact switching type | 1 floating changeover contact |
| Maximum Switching Voltage | 250 V AC |
| Interrupting rating (ohmic load) max. | 1500 VA (6 A / 250 V AC) |
| Output fuse | 6.3 A (fast-blow) |
Connection data
| Connection Method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Signaling
| Status display | Green LED (POWER) |
| Status display | Yellow LED (relay active) |
Dimensions
| Width | 6.2 mm |
| Height | 80 mm |
| Depth | 86 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Housing insulation material | Polyamide PA, self-extinguishing |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 65 °C |
| Ambient temperature (storage/transport) | -25 °C ... 80 °C |
| Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 15 % ... 85 % |
CE
| Identification | CE-compliant |
UL, USA/Canada
| Identification | UL/C-UL Listed UL 508 |
EMC data
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Noise immunity | EN 61000-6-2 |
| Electromagnetic compatibility | Conformance with EMC directive |
| Noise emission | EN 61000-6-3 |
Standards and Regulations
| Standards/regulations | IEC 61812-1 |
| Standards/regulations | IEC 60947-5-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting Position | any |
