Featured
8640033
By Rittal
RIT8640033
Weight 1.78 kg

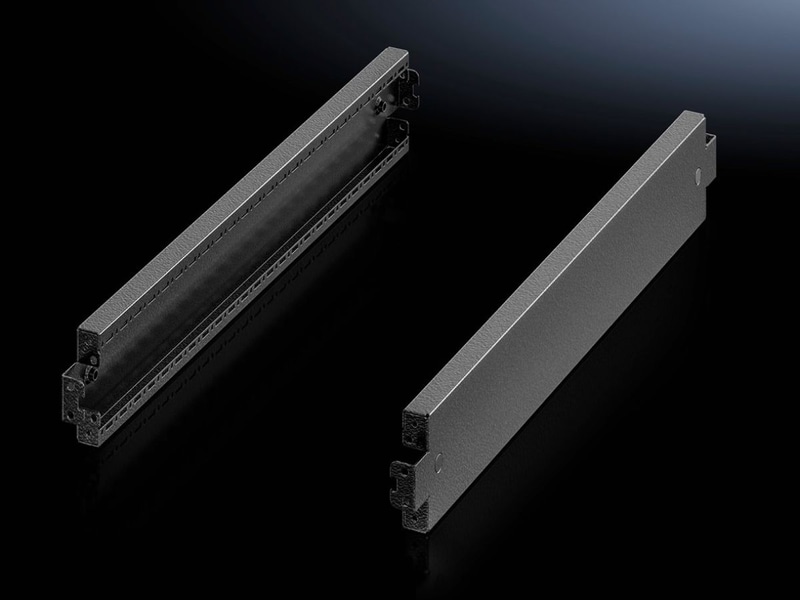

Official DistributorVX Base/plinth trim panel, side, H: 100 mm, for D: 600 mm, sheet steel
Supply includes
Assembly components
Base/plinth trim panels, side, 100 mm For base/plinth system VX, carbon steel
For side blanking of a base/plinth unit and additional stability, or the interior installation of bayed base/plinths. One 200 mm high or two 100 mm high trim panels can optionally be fitted on 200 mm high base/plinths.
Technical Specifications
Dimensions
| Height | 100 mm |
Suitable for
| Enclosure Type | VX |
| Depth | = 600 mm |
| Material | Carbon steel |
| Color | RAL 9005 |
| Type rating according to UL 50E | Type 1, 12 |
| Weight/packaging unit | 1.78 kg |
| Packaging unit | 2 pc(s). |
| Customs tariff number | 94039910 |
| EAN | 4028177958951 |
| ETIM 7.0 | EC000721 |
| ECLASS 8.0 | 27182003 |
Why Proax for Rittal 8640033?
Proax is an authorized distributor of Rittal 8640033 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
