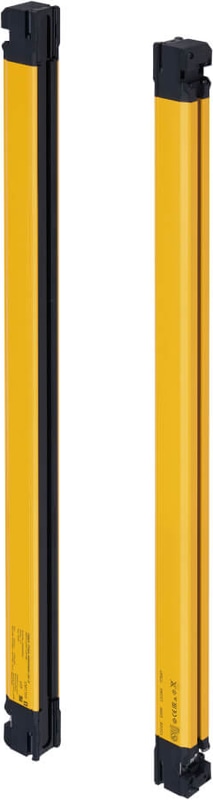

Omron F3SG-4SRB0880-25 Safety Light Curtain – 880 mm, Type 4, 25 mm Resolution
The Omron F3SG-4SRB0880-25 Safety Light Curtain delivers reliable hand protection and advanced functionality for safeguarding industrial machinery. Designed to meet Type 4 safety standards (IEC 61496-1), it provides a robust and flexible solution for high-performance safety applications.
With a 25 mm detection capability and 44 beams across a sensing height of 880 mm, it ensures precise object detection while supporting an operating range of 0.3 to 20 meters. The curtain’s dual PNP/NPN OSSD outputs make integration with existing safety systems simple and versatile.
Built for demanding environments, the unit offers IP65/IP67/IP67G protection, wide temperature tolerance (-30 to +55 °C), and resistance against mutual interference. Advanced functions such as muting, interlock, external device monitoring (EDM), blanking, beam coding, and pre-reset further enhance operational safety and flexibility.
For added convenience, the F3SG-SRB supports Bluetooth, IO-Link, and USB connectivity, enabling efficient setup, diagnostics, and monitoring. The system is supplied with both transmitter and receiver units, along with mounting brackets for quick installation.
Type: Safety light curtain (Hand protection)
Safety Category: Type 4 (IEC 61496-1)
Detection capability: 25 mm, 44 beams
Sensing height: 880 mm
Operating range: 0.3 – 20 m
Outputs: 2 protected semiconductor outputs (PNP/NPN), 1 signaling output
Response time: 13 ms
Protection rating: IP65/IP67/IP67G
Connectivity: Bluetooth, IO-Link, USB
Power supply: 19.2 – 28.8 VDC
Operating temperature: -30 to +55 °C
Documents
Why Proax for Omron F3SG-4SRB0880-25?
Proax is an authorized distributor of Omron F3SG-4SRB0880-25. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Alternate Names | F3SG4SRB088025 |
| Pack Size | 1 |
