1404500
Official DistributorSKU
PHX1404500
MPN
SI-FP-R1A-D1E
Weight
0.033 kg
This product is Not Cancellable/Not Returnable
Series SI-FP-R1A

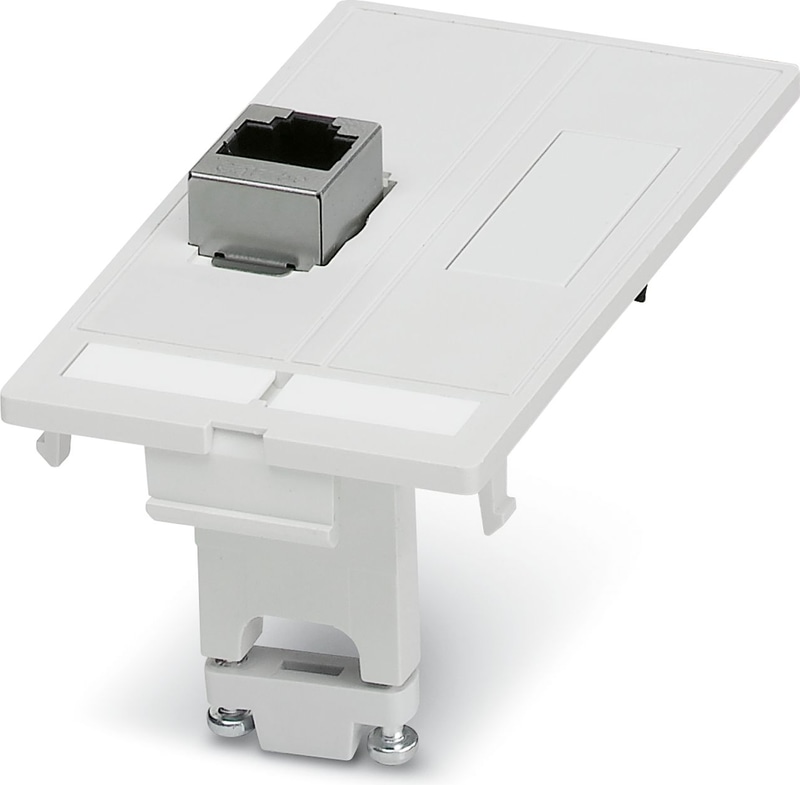

SI-FP-R1A-D1E - Front plate
Front plate with contact inserts, plastic, 1 x RJ45, 8-pos. metal, CAT5e (socket/socket), 1 x D-SUB 9 blind cover
Technical Specifications
Product properties
| Number of Positions | 8 |
| Number of slots | 2 |
Electrical properties
| Rated voltage (III/3) | max. 42.4 V DC (RJ45, UL rating) |
| Rated voltage (III/3) | max. 30 V AC (RJ45, UL rating) |
| Rated current | max. 175 mA (RJ45, UL rating) |
Dimensions
| Width | 50.7 mm |
| Height | 87.5 mm |
| Depth | 40 mm |
Material specifications
| Material front plate | PBT |
Connector
| Contact insert design | with 1x RJ45 Socket/socket, snap-in slot locking |
| Contact insert design | with 1x D-SUB 9 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -10 °C ... 60 °C |
Mounting
| Assembly instructions | suitable for all mounting frames |
Accessories
Why Proax for Phoenix Contact 1404500?
Proax is an authorized distributor of Phoenix Contact 1404500 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
